3G GPS car tracker support magnetic card reader and ibutton reader with high quality

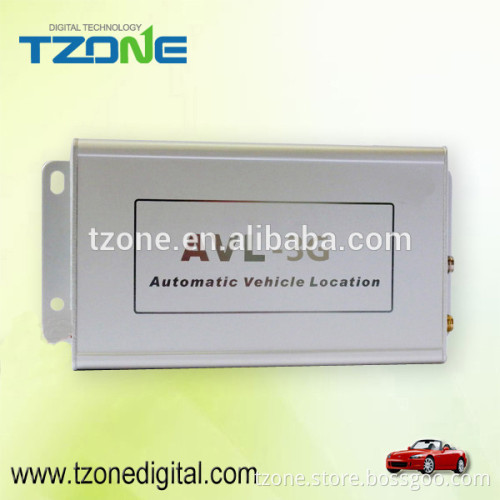

GPS Tracker support 3G network      Model No.TZ-AVL05   Applications: Vehicle Tracking Vehicle Security/Recover/Anti-hijacking Mobile Asset Tracking Location-based Services Fleet Management: car, taxi, bus, truck etc.   Description:
 GPS + GSM double module tracking
 Real time position checking
 Sending positioning data periodically
 Distance tracking
 Speed alarm
 Anti-theft and alarms
 SOS alarm
 GPS antenna cut alarm
 Power supply cut alarm
 GPS no signal alarm
 Remote fuel and power cut
 Engine, door check
 Alarm of vehicle being pulled
 Geo-fence alarm
 Fuel level monitoring
 Other functions:
 Mileage report
 Low voltage alarm
 G_sensor function
 Anti-shifting of static GPS
 OTA
 iButton
 Temperature sensor DS18B20;
 RS232 interface to connect camera, RFID reader, etc.
 TF card store the data

    Specification:

Feature	Characteristics
Dimension	96mm*65mm*25mm
Exterior Power Supply	DC 9V -- 36V
Inner lithium battery	DC 3.8V -- 4.2V
Exterior GSM antenna	Receive GSM signal better
Exterior GPS antenna	Receive GPS signal better
Power Consumption when exterior voltage is 12V	Active mode(avg.) < 100mA Sleep mode      < 5mA
Operating Temperature Range	-20°C to +60°C
Air pressure	860Kpa --1060Kpa
Humidity	Up to 75% non-condensing
Position accuracy	10 --15 meters
GSM chip	SIMCOM, support 4 Frequency GSM 850/ 900/1800 /1900MHz ,3G 900/2100MHz
GPS chip	Sirf-Star IV (super-sensitivity and high accuracy )
LED	3 LEDs indicates GSM, GPS signal, and trembling status
Button(not in the basic version)	2 buttons, report location, quick dial (optional)

                                                                  01 20 pin wire connection:
3 digital inputs (2 negative inputs and 1 positive input)
2 analog detection inputs
3 outputs
1 RS232 port
1 one_wire interface
      Optional accessories :
