Factory fridge control waterwroof 2.4G RFID temperature and humidity detection tag 125khz TZ-Tag04
- Delivery Time:
- 3 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | Guangdong, China (Mainland) |
---|
Product Description
Product Description

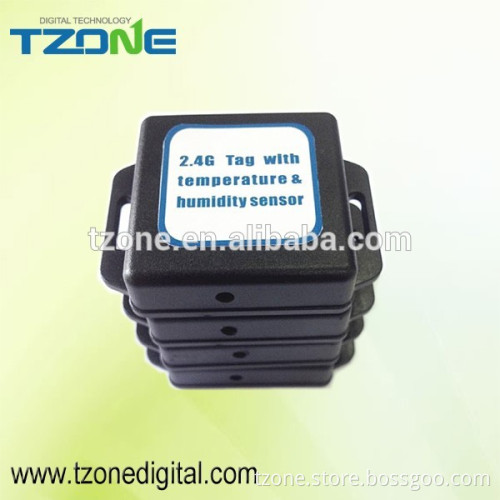

Factory fridge control waterwroof 2.4G RFID temperature and humidity detection tag 125khz TZ-Tag04 1 Tzone Tag-04 Product Preview Tag04 is a temperature and humidity detection tag working at 2.4G. Have a precision detection ability and response time. Every Tag04 has a one and only ID on factory setting or configuration by the user. Widely used in cold chain, production environment temperature and humidity test. 2 Product Applications 1. Temperature detection with long distance; 2. Humidity detection with long distance; 3. Building environment control; 4. Measurement; 5. Medical environment. 1. RFID 2.4 G wireless communication, normal ISM frequency band; 2. Precision sensor built-in; 3. Default module is on the factory; 4. 3V built-in battery; 3 Key Function 1. RFID 2.4 G wireless communication, normal ISM frequency band; 2. Precision sensor built-in; 3. Default module is on the factory; 4. 3V built-in battery; 4 Product Specification
5 Tzone Notes 1. Pay attention to the distance of TZ-Tag04 and the TZ-RD01/TZ-RD03 or other 2.4G Reader. 2. Keep the label surface drying, stay away from water and corrosive material. 3. Away from metal project. 4. Please use under proper temperature and humidity range.
New great 2016 latest Tzone Factory fridge control waterwroof 2.4G RFID temperature and humidity detection tag 125khz TZ-Tag04

Function | Note |
RF Frequency | 2.400 - 2.4835GHz |
Modulation | GFSK |
Sending time terminal | 30S, adjustable |
Battery built-in | 550mAh /3V |
TX Power | 0dBm, adjustable |
Air rate | 1Mbps |
Maximum transmission distance | 30 meters, adjustable |
Operating life | 3 years |
Voltage Alarm | Low power alarm |
IP Level | IP65 |
Net weight | 25g |
Dimension | 67mm*51mm*15mm |
Temperature detection range | -45℃~+125℃ |
Humidity detection range | 0~100%RH |
Temperature accuracy | ±0.3℃ |
Humidity accuracy | ±3.0%RH |
