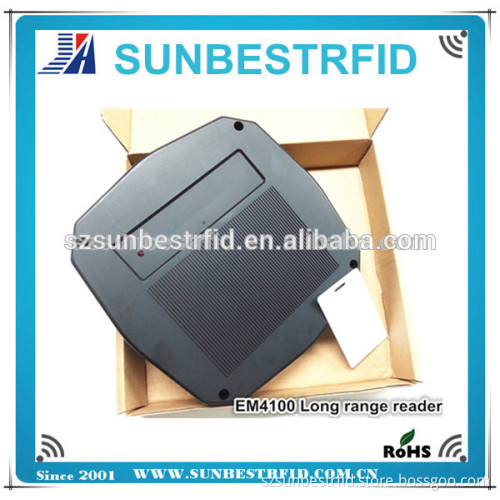

125khz rfid long range Reader
- Delivery Time:
- 10 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description Features Description | ||
1) Long Read Range: over 80cm | ||
2) The increasing of the automatic tuning and digital signal processing; | ||
3) The reduction of noise interference oscillations; | ||
3) Strong Water Resistant Enclosure; | ||
4) Supported for 125 KHz EM4100 compatible format; | ||
5) The changes of temperature can impact accuracy of the antenna tuning; | ||
6) Applied to car parks, logistics, doors and other intelligent management system. | ||
Specifications | ||
Power Requirements | 12V DC | |
Frequency | 125KHZ | |
Reading Distance | 80cm (Special Clamshell Cards); 50-60cm (Standard Clamshell cards) | |
Interfaces | RS232 WG26 WG34 | |
Read Indication | LED lights show | |
Dimension | 230*230*38mm | |
Down-lead Definition | ||
Wire Color | Signal | Function Description |
red | PWR | +12V DC |
black | GND | Connect to Ground |
NA (exposed) | Shield | Connect to Ground |
purple | Unused | |
blue | RS232 | Serial RS232 output (9600, n, 8, 1) |
brown | Data 0 | Data 0 line for Wiegand output |
green | Data 1 | Data 1 line for Wiegand output |
orange | CP | Card Present |
yellow | PRGM | Format selection |
Output format select | ||
Output Format | Programming | |
RS232 | Connect PRGM(Yellow wire) to RS232(Blue wire) | |
WG26 | Connect PRGM(Yellow wire) to GND(Black wire) | |
WG34 | Connect PRGM (Yellow) wire to PWR (Red wire) | |
