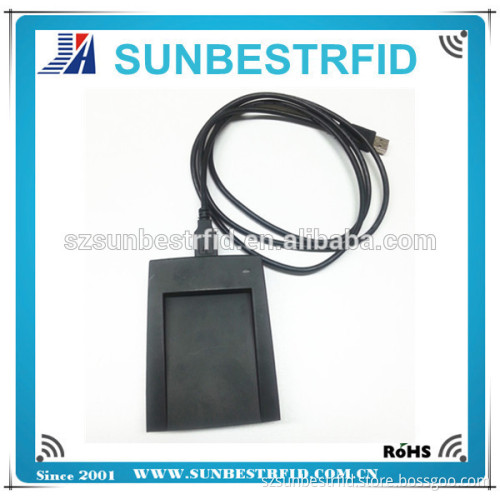

13.56MHz ISO14443A Multi-application card reader/writer
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description
Specifications Multi-application reader/writer
-Card Type: ISO14443A S50
-Fast data transfer,High data integrity,anticollion 13.56MHz ISO14443A Multi-application card reader/writer
Product Description Mf Standard • 1024 bytes EEPROM, divided into 16 sectors with 64 bytes on each sector • 100,000 write endurance cycles • 10 years data retention • ISO 14443 A • 13.56MHz transponder frequency • 106 Kbit baud rate • Bit-wise anti-collision • Up to 8 cm operating distance • 4 byte unique serial number • Random number generator • 2 bytes access key per sector • Individual access condition for each sector • Purse functionality Technical Specification • Full Mi-fare functionality • Software library for easy integration within the application • Interface: USB, RS232, Ps/2 • Support Windows 95, 98, ME, 2000, NT, XP • Demo software running on PC,VC,BC,VB,DELPHI,PB Demo source code. • Power supply: 5V, 80-120mA, PS/2 or USB port. • Transmission speed: Default 19200 bps • Read distance of up to 60mm (up to 100mm with bigger antenna size), depending on TAG • Storage temperature: -40 ºC ~ +85 ºC • Operating temperature: -10 ºC ~ +70 ºC • ISP Function easy to update firmware • Dimension: 123 * 88 * 25 (mm) • Weight: 100 g Communication setting The communication protocol is byte oriented. Both sending and receiving bytes are in hexadecimal format. The communication parameters are as follows, Baud rate: 19200 bps Data: 8 bits Stop: 1 bit Parity: None Flow control: None
-Card Type: ISO14443A S50
-Fast data transfer,High data integrity,anticollion 13.56MHz ISO14443A Multi-application card reader/writer
Product Description Mf Standard • 1024 bytes EEPROM, divided into 16 sectors with 64 bytes on each sector • 100,000 write endurance cycles • 10 years data retention • ISO 14443 A • 13.56MHz transponder frequency • 106 Kbit baud rate • Bit-wise anti-collision • Up to 8 cm operating distance • 4 byte unique serial number • Random number generator • 2 bytes access key per sector • Individual access condition for each sector • Purse functionality Technical Specification • Full Mi-fare functionality • Software library for easy integration within the application • Interface: USB, RS232, Ps/2 • Support Windows 95, 98, ME, 2000, NT, XP • Demo software running on PC,VC,BC,VB,DELPHI,PB Demo source code. • Power supply: 5V, 80-120mA, PS/2 or USB port. • Transmission speed: Default 19200 bps • Read distance of up to 60mm (up to 100mm with bigger antenna size), depending on TAG • Storage temperature: -40 ºC ~ +85 ºC • Operating temperature: -10 ºC ~ +70 ºC • ISP Function easy to update firmware • Dimension: 123 * 88 * 25 (mm) • Weight: 100 g Communication setting The communication protocol is byte oriented. Both sending and receiving bytes are in hexadecimal format. The communication parameters are as follows, Baud rate: 19200 bps Data: 8 bits Stop: 1 bit Parity: None Flow control: None
