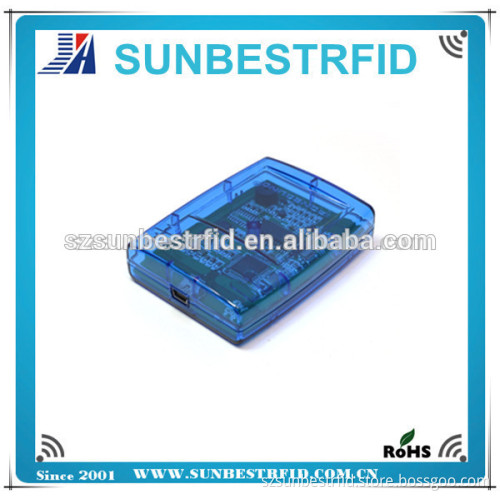

YL200 - 125khz or 13.56Mhz USB RFID Reader with factory price card reader

RFID 125Khz/13.56Mhz reader used for access control
Reading distance: 2-8cm
Efficient tag management
Interface:USB or RS232     YL200SERIES Proximity Reader(TO PC) V3.0 SHEET   Operational and Physical Characteristics           Read Range:8-12cm Dimensions:77*58*18mm Frequency:125kHz Card Format:uEM 4001 or compatible Encoding:Manchester 64-bit, modules 64 Interface:YL200T(RS232/USB virrtual RS232) or YL200P(PS/2)          YL200U(USB virtual PS2) Read Rate:<0.1S Power:From Key, 5VDC, ≤45mA Operating Temperature:-10~70C * LED and BEEP When flash Card   Output Data Formats:(select one) YL200T-10a   :RS232 Format:9600bps,N, 8, 1

DATA(10 ASCII)

ETX (0X0D)

DATA: the 5 hex bytes(10 ASCII charaters)   For Example: DATA :12H 34H 08H 6CH EDH, 0X31 0X32 0X33 0X34 0X30 0X38 0X36 0X43 0X45 0X44 0X0D   YL200T-10a3b:RS232 Format:9600bps,N, 8, 1

STX (0X0A)

DATA(10 ASCII)

ETX (0X0D)

DATA: the last 3 hex bytes(6 ASCII charaters) Data characters to 10 dec Data, and first with ’ 0’ when shortage 10 ASCII charaters. For Example: DATA :08H 6CH EDH, Change to 10 Dec Data: 0000552173, Output: 0X0A0X30 0X30 0X30 0X30 0X35 0X35 0X32 0X31 0X37 0X33 0X0D   YL200T-10a5b:RS232 Format: 9600bps,N,8,1

STX (02H)

DATA(10 ASCII)

CHECK SUM (2 ASCII)

CR

LF

ETX (03H)

[The 1byte (2 ASCII charaters) Check sum is the “Exclusive OR” of the 5 hex bytes(10 ASCII) Data characters.] For Example: DATA : 62H E3H 08H 6CH EDH, Check Sum: (62H) XOR (E3H) XOR (08H) XOR (6CH) XOR (EDH)=08H, Output: 0X02 0X36 0X32 0X45 0X33 0X30 0X38 0X36 0X43 0X45 0X44 0X0D 0X0A 0X03. YL200P/YL200U(USB virtual PS2)-10a3b:PS/2 Format

DATA(10 ASCII)

CR

LF

DATA :the last 3 hex bytes(6 ASCII charaters) Data characters to 10 dec Data, and first with ’ 0’ when shortage 10 ASCII charaters. For Example: DATA :08H 6CH EDH, Change to 10 Dec Data: 0000552173, DATA FORMAT CAN CHANGE BY REQUIRE.
