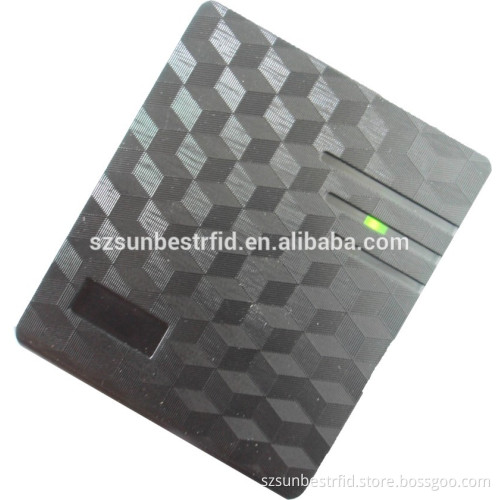

YA08 - 125khz RFID Reader with WG26

    Product advantages*Anti-metal shielding and readers interference ability.*Advanced anti-rash circuit design, anti-surge protection, anti-pick the wrong protection.*Use the import of pure digital radio base station chip, error-free design. *Intelligent sound and lighting control mode.(bright blue light indicates to you a new visual effect) *Buzzer sound crisp and loud, not affected by interference modulation. *Long distance transmission, up to 100 meters. *Resin sealant, sealed-type strong, indoor or outdoor use. *Compliance with international standards of the wiring.(supports WG34, simply WG line shorted to ground) *Output, using the glass discharge tube and semiconductor discharge circuit , multi-level lightning protection, 15KV static shock resistant. *Meet the national GB/T 17626.4/IEC61000-4-4 standard electrical fast transient burst immunity test (see EMC)   Wire connection WG26/34                 RS485               RS232 Red: DC12V            Red: DC12V         Red: DC12V                 Black: GND           Black: GND           Black: GND Green: D0             Green:4R+           Green: RX White: D1             White: 4R-           White: TX Blue: LED Yellow: BEEP Grey: WG26/34 Orange: Doorbell   Technical Parameters *Voltage: DC5V-16V           *Current: <50mA *Temperature: -25-85 degree
*Reader speed<0.2sec *Humidity:10%-90% *Punch interval <0.5sec *Sensing distance: ID (8-15cm)/IC(3-6.5cm) *Support: EM-ID card, Middle distance ID card, general ID card, HID card, Mi-fare1 card, ISO14443A or ISO15693 card. *Frequency: 125khz, 13.56Mhz *Communication: Wiegand 26/34/ABA/RS232/RS485 *Communication from: The wiegand 100M. The ABA, RS232 Format 10M                  The RS485 format: 1200M *Built-in: Antenna, speaker, buzzer, red(blue) Green color LED *Transmission: Wiegand, RS232 real-time transmission, (RS485 addressing transmission)
