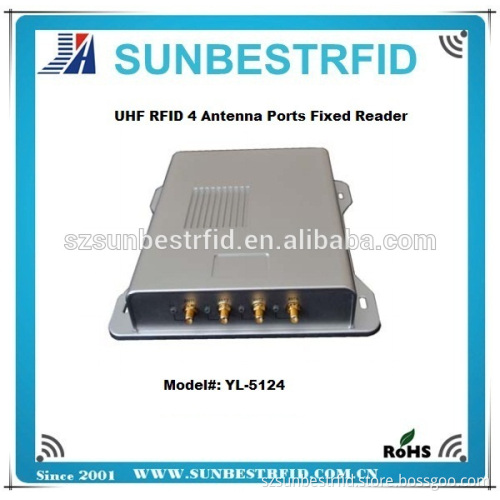

UHF RFID 4 Antenna ports long range fixed reader EPC GEN2/ISO18000-6C
- Delivery Time:
- 3 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description
Description: UHF Four Channel Reader Introduction
YL5124 is a four-channel EPC CLASS1 GEN2 UHF
RFID fixed reader.
The specialty of this reader is achieve operate passive
tag in short range, it be going batch production and
superior performance. Function: It accord with EPC Global class1 Gen2 UHF RFID rotocol in serried read mode operation authentication. It use of advanced data process mode get huge tag ata from network resources to doing effective management. Agile buffer mode and tag sifting mode. It accord with ISO 18000-6C type UHF RFID tandard.t can be set and be configured parameters, It can rovide the largest of data throughput capacity and he optimum performance. It can through set parameter to achieve multi-evice in serried read tag. It support all Gen2 command, including entification, write, lock and delete. Reader dimension:160(200)X200(280)X42MM
N.W: 1.3kgs G.W.:2.5kgs
Fixing: Horizontal
Operation temperature: Up -20℃to 60℃
Storage temperature: Up -40℃to 70℃
Humidity :Up 10% to 95% Non-condensing
Protection specifications:IP-53
Antenna:4-port duplex SMA antenna. Each port in turn clockwise independent transmit and
receive.
Transmit power: Max. 30dBm adjustable
Power supply:AC110-AC220 switch to DC12V, 25W
Frequency range: through 860MHZ to 960MHZ
optionalInterface:10/100 Base T Ethernet (RJ45 connectors), can be configured to use a fixed IP
address or DHCP, RS232 interface, RS485 interface, wiegand 26 interface, trigger
Input Tag air interface: EPC CLASS1 GEN2 standard
Grid protocol: TCP/IP
Highest data read rates :200pcs tag / second
Tag moves best speech:120Km/h (configure to YL915H12 antenna with YD8654 tag)
Farthest distance reader:40M (configure to YL915H12 antenna with YD8654 tag)
Recommend read range:20M (configure to YL915H12 antenna with YD8654 tag)
Read range: Reference configuration of the antenna pattern
YL5124 is a four-channel EPC CLASS1 GEN2 UHF
RFID fixed reader.
The specialty of this reader is achieve operate passive
tag in short range, it be going batch production and
superior performance. Function: It accord with EPC Global class1 Gen2 UHF RFID rotocol in serried read mode operation authentication. It use of advanced data process mode get huge tag ata from network resources to doing effective management. Agile buffer mode and tag sifting mode. It accord with ISO 18000-6C type UHF RFID tandard.t can be set and be configured parameters, It can rovide the largest of data throughput capacity and he optimum performance. It can through set parameter to achieve multi-evice in serried read tag. It support all Gen2 command, including entification, write, lock and delete. Reader dimension:160(200)X200(280)X42MM
N.W: 1.3kgs G.W.:2.5kgs
Fixing: Horizontal
Operation temperature: Up -20℃to 60℃
Storage temperature: Up -40℃to 70℃
Humidity :Up 10% to 95% Non-condensing
Protection specifications:IP-53
Antenna:4-port duplex SMA antenna. Each port in turn clockwise independent transmit and
receive.
Transmit power: Max. 30dBm adjustable
Power supply:AC110-AC220 switch to DC12V, 25W
Frequency range: through 860MHZ to 960MHZ
optionalInterface:10/100 Base T Ethernet (RJ45 connectors), can be configured to use a fixed IP
address or DHCP, RS232 interface, RS485 interface, wiegand 26 interface, trigger
Input Tag air interface: EPC CLASS1 GEN2 standard
Grid protocol: TCP/IP
Highest data read rates :200pcs tag / second
Tag moves best speech:120Km/h (configure to YL915H12 antenna with YD8654 tag)
Farthest distance reader:40M (configure to YL915H12 antenna with YD8654 tag)
Recommend read range:20M (configure to YL915H12 antenna with YD8654 tag)
Read range: Reference configuration of the antenna pattern
