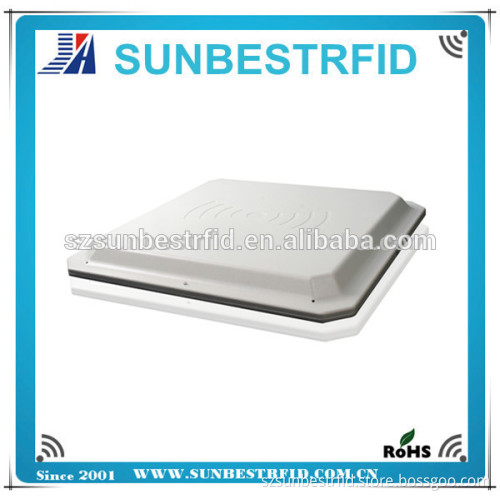

YL6890 Integrated long range UHF rfid reader writer

Model

YL-6890 Integrated UHF Reader(with Passive tags)(12M)

Frequency

1Sm 902-928MHZ

Operation Mode

Fixed Frequency or FHSS or Software Programmable

  RF Power Output Adjustable

Power Output Adjustable Range 0.1W --- 1W

Built- in Antenna Type

Built-in horizontally polarized antenna.

Communication Ports

1)RS-232

2)RS-485

3)Weigand 26 bits \ 32bits

Communication Rates

Up to 57,600bps and software programmable

     Reading/Writing Capability

1)  Capability of Reading/Writing agreement of ISO18000-6B ,EPC Passive tags and software programmable.

2)  Able to decode EPC,ISO-18000B.

3) Reading Rang(Max). 30M  Reading Rang(Reliable) 12M

     Programmable Application Platform

1) Allows Programmable Interface with host applications;

2) Currently Supports Visual Basic or VC applications.

Power Consumed

+12V DC, Average power of less than 5W

Dimension / Weight

460×460×45MM  5.0KG

Operation Temp

Working Temp. -35°~ +60 °   Storage Temp. -50°~ +80°
