shenzhen digital thermometer

Product Description 1. Introduction.
IT-121 measures the body temperature through receiving the infrared energy radiation from the surface of objects. It is with forehead temperature mode,and ear temperature mode. The measurement result directly shows on the LCD screen It is easy, hygiene and accurate. The device is widely used for home healthcare, medical institutes and many other occasions.The product is mainly composed with infrared temperature sensors, signal receiving processor, buttons, buzzer, LCD display, battery, etc

1.1 Product intended use
The infrared thermometer is intend for the measurement and monitoring of human body temperature by doctor or customers in the hospital or home, it is used alone for human beings for all ages.

2. principle

Any object in which temperature is higher than absolute zero degree will transmit

some infrared radiation energy according to its own temperature. The radiation energy and its distribution per wavelength are closely associated with its surface temperature. Based on the principle, it is possible to measure the forehead surface temperature and then adjust the offset between forehead temperature and actual body temperature, which will result in the correct display of body temperature.

3. Product features

●Contact-type infrared measurement；
●Forehead,Eear and object temperature,three modes of measurement；
●Hi definition dual color LED backlit, clearly and softly display
●Fever alarm function (defaut alarm value is 38.0°C and above)
●Capacity of storing 20 sets measurements；
●Dual temperature units Cesis and Fahrenheit optional.
●Automatic shut-down and power-saving.


4. Technical parameters

Measurement method Contact-Type
Measurement Mode Body Mode 32.0°C～42.9°C（89.6°F~109.2°F)
Surface Mode 0°C～100°C(32°F~212°F)
Measurement accuracy Body Mode ±0.3°C(0.54°F)
Surface Mode ±1.0°C(1.8°F)
Display resolution 0.1°C/°F
Operating environment 16° C ~ 35 ° C (60.8° F to 95 ° F) ≦ 85% moisture condensation
Storage condition - 25 ° ~ 55 ° C - (-13° F to 131 ° F)≦ 90% moisture condensation
Power supply DC1.5V×2
Power consumption When off ≦ 10 uw
Auto power-off When measuring≦ 30 mw In 30 seconds
Dimensions 30mm * 44 mm *152 mm(length x width x height)
Weight About 72 g (without battery)
Dimensions 152mm * 44 mm *30mm(length x width x height)

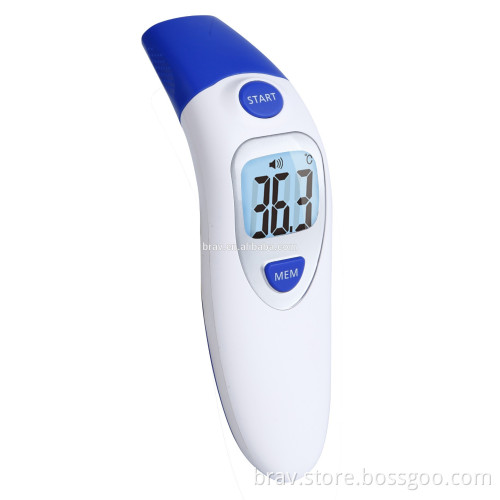

Detailed Images




Unigue design: The IT-121 adopt the special design which is makes more confortable for measuring human body temperature. It is unique. It is an innovation design which makes the two modes : Forehead temperature measuring and Ear temperature measuring in one thermometer come ture.

Smart Software and reliable result. The IT-121 updated the newest clinical data and the stable software which ensure the accurate measuring.   Packing & Delivery Standard packing: Contents:  1 THERMOMETER IT-121 1 INSTRUCTION MANUAL 2*AAA batteries 1 gift box. Master carton box packing.
Terms of delivery: MOQ 1000 unit delivery time is 7-15 working days after all artworks confirmed and 30% in advanced payment received. More details please contact us directly ...
