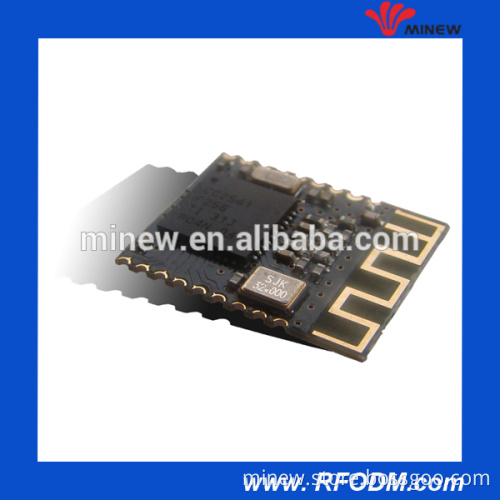

Mini ibeacon bluetooth BLE 4.0 module chipset CC2540

Mini ibeacon bluetooth BLE 4.0 module chipset CC2540     Product Description   MS47SF2 is a Bluetooth4.0 single mode module, device targeted for low power sensors and accessories. The module offers all Bluetoothlow energy features: radio, stack, profiles and application space for customer applications, so external processor is not needed. The moduleTransmission speed 1Mbitin 20 meters,used to transfer simple data sets between compact devices opening up a whole new class of Bluetooth applications such as watches, TV remote controls, medical sensors, and fitness trainers. The module can be power directly with a standard 3V coin cell batteries or pair of AAA batteries.In lowest power sleep mode it consumes only 600nA and will wake up in few hundred microseconds.    Features: Bluetooth4.0, single mode compliant- Supports master and slave modes TX power: +4.5 dBm; RX sensitivity: -88dBm Ultra low current consumption Transmit: 24mA (0 dBm) Deep Sleep mode: 0.4uA iNOVA firmware including Bluetooth Low Energy profiles such as BLP, HTP, HRP, PXP, etc. Demo Apps on iPhone 4S/New iPAD are available. Authentication IC is unnecessary for Bluetooth Low Energy apps on iPhone 4S/new iPad. Size: 24.0x12.04x1.7mm Applications: Pedometers Health care Watches Blood pressure and glucose meters Weight scales Key fobs Households sensors and collector Devices Security tags Wireless keys (keyless go) Proximity sensors HID keyboards and mice Automotive  Bluetooth Specification: Standard BluetoothV4.0, Class II Profiles: Network Availability, Proximity, fine me, heart rate, weight Scale, HID, etc. (detailed profiles depends on the firmware) Frequency Band: 2.402G ~ 2.480G Maximum Data Rate: 1Mbps RF Input Impedance: 50 ohms Baseband Crystal OSC: 16MHz Interface:  UART, PIO, AIO,Debug SPI Sensitivity: -90dBm at 0.1%BER RF TX Power: 4dBm Power Supply Voltage: 1.8~ 3.6V DC Working Current:  RX/TX Active, 20mA typical. Temperature: -40ºC to +85ºC Humidity: 10%~90% Non-Condensing Certifications: BQB/FCC/CE Environmental: RoHS Compliant Dimension: 24 * 15 * 1.7mm 2D drawing:   Shipping method:    DHL/ FedEx/ UPS/ TNT etc. within 4-8working days.    Certifications     Company Information   We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products. We only focus on designed and manufactured many different high quality and low cost iBeacons hardware and one-stop services.    1. Schematic design;    2. Mold design;    3. PCB layout;    4. Firmware design;    5. Production and assembly.  Warmly welcome the OEM and ODM projects.     FAQ   Do you provide the technical support to the developers? Re: SURE. The following technical data and documents will be provided to developers. 1. SDK    2. API    3. Demo APP    4. Configuration APP 5. Instructions  Can I change the password? Re: Yes,you can use configuration APP to change password by yourself.  Do you have SDK or the source code? Re: Yes,we will provide you after sample was arrived.  Does MiniBeacon comply with Apple's iBeacon standard? Re: Yes,MiniBeacon has been licensed by Apple ibeacon program with contact No.iBC-14-00582.  Any other more questions,pls contact me to know more.
