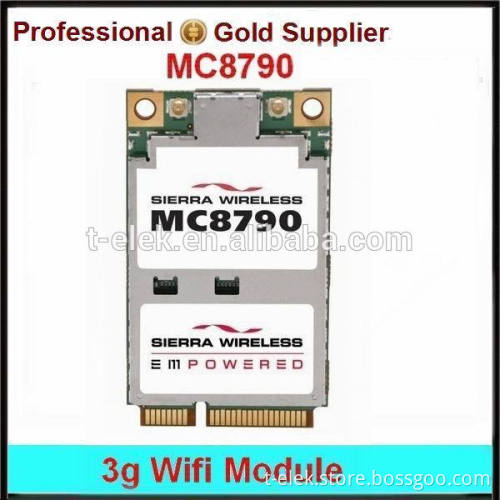

Sierra Wireless MC8790 HSUPA\HSDPA 3g gprs module price
- Delivery Time:
- 2 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description
Specifications module price
HSUPA\HSDPA\EDGE\GPRS\GSM
WCDMA 850/1900/2100 MHz
DL/UL: 7.2mbps/5.76mbps
QUALCOMM MSM6290
Product Description Sierra Wireless MC8790 HSUPA\HSDPA 3g gprs module price Specifications: Sierra Wireless MC8790 embedded wireless modules provide wide area wireless data access at speeds up to 7.2 Mbps downlink and up to 5.76 Mbps uplink.
These modules offer UMTS/HSPA and quad-band GSM/GPRS/EDGE network access for roaming on high-speed networks worldwide.
In addition, antenna diversity improves fringe performance on global HSPA networks using the 850, 1900 and 2100 MHz bands. Key Features: * Peak downlink speeds up to 7.2 Mbps and peak uplink speeds up to 5.76 Mbps
* Uses MSM6290™ chipset from QUALCOMM
* World class product performance, quality and reliability
* Solid documentation, tool development and consultation services
* Solid support for device integration and verification
* Comprehensive SDK and enabling software
* Flexible driver strategy with NDIS support and non-NDIS abilities
Key Benefits: * High-speed, broadband connectivity
* Best-in-class technical and integration support
* Easy integration
* Premium functionality and performance
* Compact size and light weight
* Antenna diversity for improved fringe performance
* Triband for global connectivity
Air Interface: HSUPA\HSDPA\EDGE\GPRS\GSM
Frequency: WCDMA 850/1900/2100 MHz
Bands:EDGE/GPRS/GSM 850/900/1800/1900 MHz
Approvals: FCC, IC, CE, GCF, PTCRB, A-Tick, AT&T, Telstra, NTT DoCoMo, Softbank, Bell
Standby and Idle Power: 4-5mA
GSM GPRS Max Power: 2.6A
HSxPA Max Power: 720mA
CPU IO Voltage Performance: 2.6V
Codec: HR, FR, EFR, AMR
Echo Cancellation and Noise Reduction: Yes
DTMF: Yes
UART: 1x 8-wire
USB: USB 2.0 high speec
ADC: 1
Flash LED Output: 1
PWM Buzzer: No
Keyboard Interface: No
SIM Interface: 1.8V or 3V
Antenna Diversity: Yes
Location Solution: gpsOne
Embedded SIM: No
Control Options: AT commands
Device Management: No
Drivers:
Windows 7
Windows 7 Mobile Broadband
Windows Vista
Windows Vista x64
Windows XP
Windows XP-x64
Linux
Windows CE
Windows Mobile
Device Dimensions 51x30x4.5mm
Product show:
Packaging & Shipping Packaging Details: General Packing as customized package Delivery Detail: About 2-7 days after receiving the deposit
HSUPA\HSDPA\EDGE\GPRS\GSM
WCDMA 850/1900/2100 MHz
DL/UL: 7.2mbps/5.76mbps
QUALCOMM MSM6290
Product Description Sierra Wireless MC8790 HSUPA\HSDPA 3g gprs module price Specifications: Sierra Wireless MC8790 embedded wireless modules provide wide area wireless data access at speeds up to 7.2 Mbps downlink and up to 5.76 Mbps uplink.
These modules offer UMTS/HSPA and quad-band GSM/GPRS/EDGE network access for roaming on high-speed networks worldwide.
In addition, antenna diversity improves fringe performance on global HSPA networks using the 850, 1900 and 2100 MHz bands. Key Features: * Peak downlink speeds up to 7.2 Mbps and peak uplink speeds up to 5.76 Mbps
* Uses MSM6290™ chipset from QUALCOMM
* World class product performance, quality and reliability
* Solid documentation, tool development and consultation services
* Solid support for device integration and verification
* Comprehensive SDK and enabling software
* Flexible driver strategy with NDIS support and non-NDIS abilities
Key Benefits: * High-speed, broadband connectivity
* Best-in-class technical and integration support
* Easy integration
* Premium functionality and performance
* Compact size and light weight
* Antenna diversity for improved fringe performance
* Triband for global connectivity
Air Interface: HSUPA\HSDPA\EDGE\GPRS\GSM
Frequency: WCDMA 850/1900/2100 MHz
Bands:EDGE/GPRS/GSM 850/900/1800/1900 MHz
Approvals: FCC, IC, CE, GCF, PTCRB, A-Tick, AT&T, Telstra, NTT DoCoMo, Softbank, Bell
Standby and Idle Power: 4-5mA
GSM GPRS Max Power: 2.6A
HSxPA Max Power: 720mA
CPU IO Voltage Performance: 2.6V
Codec: HR, FR, EFR, AMR
Echo Cancellation and Noise Reduction: Yes
DTMF: Yes
UART: 1x 8-wire
USB: USB 2.0 high speec
ADC: 1
Flash LED Output: 1
PWM Buzzer: No
Keyboard Interface: No
SIM Interface: 1.8V or 3V
Antenna Diversity: Yes
Location Solution: gpsOne
Embedded SIM: No
Control Options: AT commands
Device Management: No
Drivers:
Windows 7
Windows 7 Mobile Broadband
Windows Vista
Windows Vista x64
Windows XP
Windows XP-x64
Linux
Windows CE
Windows Mobile
Device Dimensions 51x30x4.5mm
Product show: Packaging & Shipping Packaging Details: General Packing as customized package Delivery Detail: About 2-7 days after receiving the deposit
