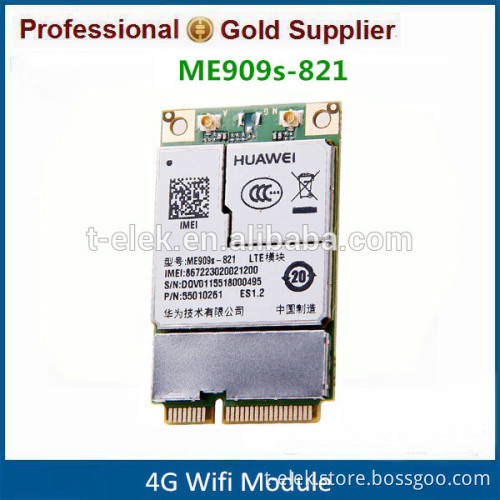

Huawei 4G ME909s-821 LTE FDD TDD mini PCIe wifi Module

          Huawei 4G ME909s-821 LTE FDD TDD mini PCIe wifi Module
Product Description   ME909s-821 is the first LTE cat4 module based on Hi-Silicon chipset. Which is high-quality designed LTE module in small size and Huawei standard LGA form factor, especially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs. ME909s-821 supports 150Mbps downlink data rate, including enhanced features like FOTA, USSD and Huawei enhanced AT commands. ME909s-821 supports China region LTE Bands including both FDD-LTE & TDD-LTE, and has two different form factor: LGA and Mini PCIe form factor. With Huawei pin-to-pin form factor, it is easy to migrate from MU609, MU709 or ME909u family to ME909s-821.

Form Factor	Mini-PCIe
Bands	ME909s-821 Mini PCIe: LTE (FDD): B1,B3,B8 LTE (TDD): B38, B39,B40,B41 DC-HSPA+/HSPA+/HSPA/UMTS : B1, B5, B8,B9 TD-SCDMA: B34, B39 EDGE/GPRS/GSM : 900/1800 MHz
Data Transfer Rate	DC-HSPA+ :Downlink:42 Mbps, Uplink: 5.76 Mbps LTE TDD: Downlink:112Mbps, Uplink: 10Mbps LTE FDD: Downlink:150 Mbps, Uplink: 50 Mbps @Bandwidth 20M
Interface	Mini PCIe interface Antenna interface USB 2.0 High speed PCM Voice SIM Card LED Power supply Reset
Power Supply	3.2 V to 4.2 V (3.8 V recommended)
Temp Range	-40℃ to 85℃
Voice	PCM Voice DTMF
Special Features	CDC-ECM FOTA Firmware Update via USB Embedded UDP/TCP/FTP(s)/HTTP(s) stack High-speed UART CMUX Sleep mode
Operating System	Linux, Android, WinCE, Windows 8/10

    Packaging & Shipping Packing : General packing or as customized package   Delivery time : About 2-5 days after receiving the deposit
