NFC device for iPhone/iPAD/iPod Touch secure wireless payment

Get Latest Price

Delivery Time:: 7 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications 1. read&write NFC/RFID tag

2. Support Android/Windows mobile

3.used for document tracking, healthcare,etc

NFC device for iPhone/iPAD/iPod Touch secure wireless payment

Features:
* NFC1 is a Near Field Communication (NFC) / Radio Frequency Identification (RFID) Reader and Payment Adaptor designed for iPhone/iPod Touch to provide NFC two-way communication, RFID read/write and contactless payment capabilities.
* NFC and RFID tag information can be written and read by the NFC1 and communicated to an iPhone/iPod Touch.
* The NFC1 has an SWP Smartcard interface that can be configured as credit, debit, pre-paid and loyalty cards, for secure contactless transactions.

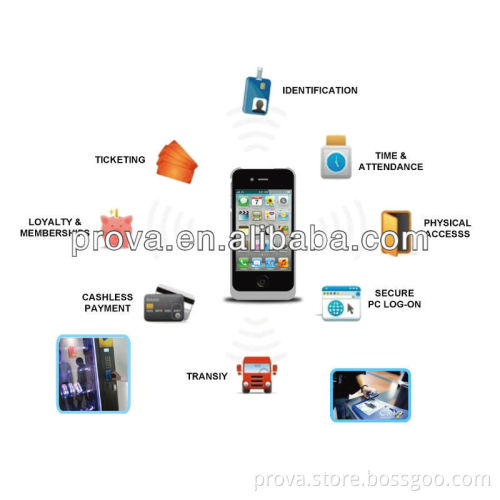

* The NFC1 is ideal for iPhone/iPad/iPod Touch users who want to use their iPhone/iPod Touch for fast and secure contactless payments, transit payments, loyalty rewards, checking balances, top-up, discovering new services from smart posters or kiosks and exchanging information with other NFC phones.
* Business iPhone/iPod Touch users can use the NFC1 for commercial applications such as asset tracking, document tracking, healthcare, security and access control.

Specifications:

Interface	Apple 30pin(iPhone(3G,3GS,4G,4GS),,iPod Touch(3,4))
Interface	Charge iPhone and iTune Sync via micro-USB Compact and Reliable Snap-On Design
Supported Operating System	IOS(3.x and higher), OSX(10.5.6 and higher)
Communication Protocol	30PIN Private API
Power Supply Mode	iDock 3.3V
Power Supply Mode	USB 5V(only for charging)
Near Field Communication (NFC)	NFCIP-1 and ISO 18092 compliant /Peer to peer communication / Data exchange speed up to 424 kbps
Supported Card Types	ISO 14443 Type A&B/ Mifare /Felica /4 types of NFC(ISO/IEC 18092) tags
Secure Element Support	SWP Smartface interface
Data Transfer Rate	Up to 4.0 cm (1.5”) for NFC/ Up to 5.0 cm (2.0”) for ISO 14443A/B /Up to 6.0 cm (2.5”) for ISO 15693
Operating Temperature	0°C ~ 50 °C
Operating Humidity	<85% without Condensation
Storage Temperature	-20°C ~ 85 °C
Standard and Certification	ISO/IEC 18092, CE, FCC, RoHS Certification, EMV 2000 Level 1,MFI Specification
