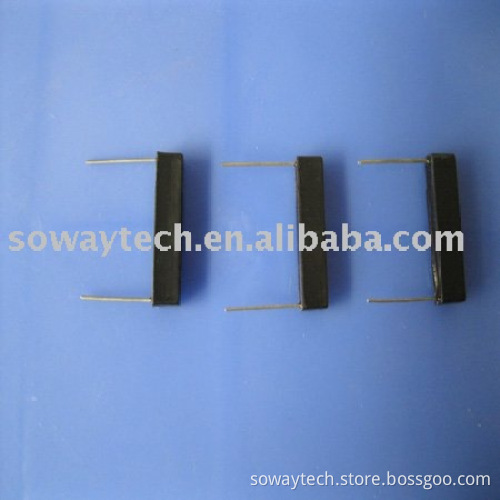

1A PCB reed switch/magnetic sensor

Specifications 1.Easily mounted and good function.

2.Hermetically sealed, suit to tough environment and long life.

3.RoHS certificates switch

PCB mounted reed switch/ Plastic-envelop reed switch: (1)Choice of normal open or normal close. (2)No standby power requirement. (3)Customer defined sensitivity. (4)Hermetically sealed, suit to tough environment and long life.  Technical Parameter:

Item	Unit	Nominal
Operate Range	AT	15-70
Switch Power(Max)	W	70
Switch Voltage(Max)	V	DC200   AC250
Switch Current(Max)	A	3
Carry Current(Max)	A	5
Contact Resistance(Max)	mOh	200
Insulation(Min)	Oh	106
Actuation time	ms	0.35
Release Time(Max)	ms	0.5
