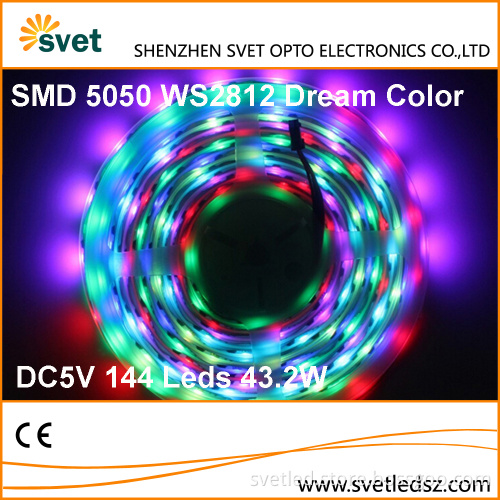

SMD 5050 WS2812 DC 5V 144 Led Pixel Strip

SMD 5050 WS2812 DC 5V 144 Led Pixel Strip
Product Description for WS2812 Led Strip
1. LED Resource: SMD 5050 RGB Led + WS2812 IC 2. Power: 43.2W/M 3. Input Voltage: DC 5V 4. Led : Each LED separately controlled,144IC/meter (1 IC drives 1 led chip)
5. Pitch: 16.6mm(1000/64) 6. Grey Scale: 256 7. Bits/Color: 8-bits/color, 24bits for RGB color
8. FPC Size: 500*10*2.5mm 9. FPC Color: Black/White 10. Waterproof Grade: IP30/ IP65 /IP67 11. Colors: Full color RGB, dream color changing 12. Wave Length: 620-630 (λ) 520-525 (λ) 465-470 (λ)
13. Light Intensity:350-450mcd/led 14. Cuttable: Every 3 Leds Cuttable Product Overview for WS2812 Led Strip
Production Process Aging Process Packaging Application of WS2812 Led Strip
Car decoration  Architectural decorative lighting   Archway, canopy and bridge edge lighting   Amusement park, theater and aircraft cabin mood lighting   Emergency hallway lighting   Auditorium walkway lighting   Stairway accent lighting   Concealed lighting   Backlighting for signage letters   Channel letter lighting   Emergency exit path lighting   Cover lighting
  Company Profile
Svet is a professional manufacturer and supplier of Led light in China.Our main products cover led strip light,led tube,led bulb,led spotlight,led downlight and led floodlight.The product has achieved CE, ROHS certification. Factory directly offer a competitive price with high quality. Trade Information
1. Trade Term: EXW or FOB Shenzhen Port of China 2. Payment Term: 50% T/T deposit in advance and balance payment before shipment. 3. Delivery Time: 2-4 Weeks after receipt of deposit and order details confirmed. Trade Show                                                                                                                               Certification
