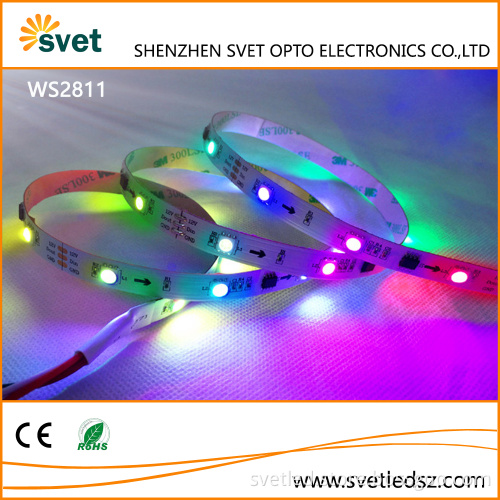

SMD5050 WS2811 programmable dream color led light strip

Specification

Product Type: LED light strip
Led Quantity	30 Leds/M
Input Voltage	DC12V
Color	RGB
Max. Power Consumption	5.76 W/M
LED Light Source	SMD 5050
IC Quantity	10
IC Type	WS2811
Operating Temperature	-25℃~ +45℃

Product Description Product features
SMD5050 WS2811 programmable dream color led light strip
1.Led light strip with using high quality Epistar or Sanan chips, gold line, copper bracket, low-light failure, long life span.
2. Each IC control three LEDs, and each triplet can be cut. 3. Can display video animation, images, text, and other characters.
4. Display effect is diversiform, can be freely edited. Product Details SMD5050 WS2811 programmable dream color led light strip
1. Led light strip use constant current IC driver to control the LED, high stability. 2. 5meter/roll, also can be customized. 3. White PCB board and black PCB board is optional.
4. Easy to install and maintain.  5. The 3M adhesive backed tape, strong viscosity, not easy to fall. 6. 30 LEDs, 48 LEDs, 60 LEDs are optional. SMD5050 WS2811 programmable dream color led light strip
1. FPCB board material: RA copper
2. FPCB board appearance: White board and black word or black board and white word.
SMD5050 WS2811 programmable dream color led light strip
1. Use the power adapter connected to the led strip and controller.
2. The maximum length in series is 5 meters when led strip is DC 12V.
3. Led light strip with more than 5m must be connect the power supply every 5 meters distance, otherwise there will be pressure drop.
SMD5050 WS2811 programmable dream color led light strip
Strict Quality Control We have a strict quality control system from raw material to finished led strips.Each step must pass strict inspection, strive to produce superior products:
1.Incoming Raw Material Inspection
Comparing incoming raw material and sealed sample in terms of class, quality grade, technical data, ensuring the consistency with purchasing requirements, thus guarantee the ensuing manufactured product fulfilling customers’ requirements.
2.Led Drying
Leds will absorb humidity when exposed to air, which requires 24H drying before SMD.
3.Light-on Test after SMD
After pasting of leds onto the PCB board, each strip panels will be powered to see if any insufficient soldering, slanted leds, and dead leds, if yes, they have to be repaired until qualified; if no, then flowing to the next stream.
4.Light-on and beating test
Strips after SMD (0.5M) should be soldered to 5M roll, after which they have to be lighted again to check if any dead leds, and together with beating test to see if leds fixed tight on pcb board
5.Aging Test
Finished products must undergo at least 8 hours’ aging test 100%
6.Light-on test of finished product
Finished product, before packing, must be lighted again after aging to check if any dead leds.
7.Pre-shipment Inspection
Proofing finished product with customers’ requirements again before shipment, to ensure the consistency of products with customers' needs.
SMD5050 WS2811 programmable dream color led light strip
IP Rating The following is led light strip IP rating: IP20：Non- waterproof, available indoor. IP65：Silicone glue or epoxy resin, can prevent the splashing water invade, available indoor. IP67：Silicon Tube, hollow, can prevent the big wave water invade; available indoor and outdoor.
IP68：Silicon Tube+Silicone gel or silicone extrusion molding, completely prevent dust and water invade; available indoor, outdoor and water. Applications Led light strip widely used in cove lighting, architectural lights for canopy, corridor, Archway, backlight or edge lighting for signage, DIY lights for home use. Certifications Company Information
