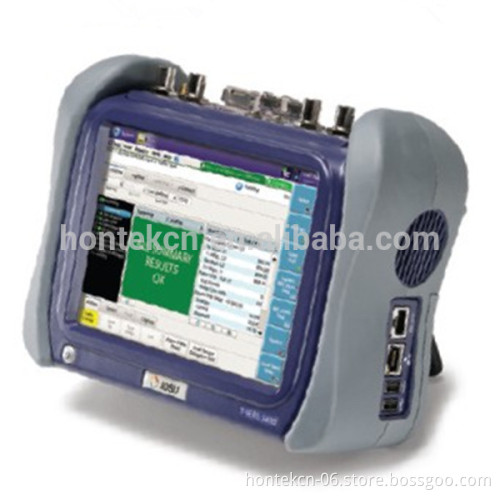

Network tester JDSU MTS-5800

Specifications Network tester JDSU MTS-5800 SDH, TDM/PDH to 10G Ethernet, SONET

DS1/DS3

E1/E3/E4

SONET/SDH/Ethernet

Network tester JDSU MTS-5800        The T-BERD/MTS-5800 is available in six different hardware configurations designed to meet all testing needs: 1. Single-and dual-port Ethernet/SONET/SDH versions 2. With or without TDM/PDH interfaces 3. Fully loaded TDM/PDH to 10G Ethernet, SONET, and SDH DS1/DS3
E1/E3/E4
SONET/SDH/Ethernet   Benefits
• All-in-one handheld tool reduces complexity of multitechnology testing
• Optimized for easy field use and addresses emerging network technologies
• Guarantees maximum efficiency and success in evolving Carrier Ethernet and
Mobile Backhaul networks
• Ensures service life-cycle management with service activation and troubleshooting
capabilities integrated into one instrument
• Speeds service activation and troubleshooting with TrueSAM™, the ultimate
installation tool, and J-Complete test tools that both follow best practices and
provide repeatable methods and procedures with easy-to-understand results   Applications
• Tests and troubleshoots converged Ethernet/IP networks at 10 Mbps to 10 G interfaces
– Tests Layer 1-3 Ethernet/IP SLAs with an automated, enhanced RFC 2544/SAMComplete per ITU-T Y.1564
– Integrated approach to burst testing including CBS verifies buffer settings and TrueSpeed per RFC 6349 for performance testing so you can experience your network the way your customers do
– Robust troubleshooting capabilities including network discovery, top talker analysis, deep packet capture, packet analysis, and expert guidance
• Tests TDM/PDH to SONET/SDH at OC-3/STM-1 to OC-192/STM-64, including service disruption measurements and path overhead (POH) capture with triggers
• Tests dual FC (1, 2, 4 G) for service activation and maintenance of SANs and low-latency circuits
• Verifies network synchronization
– Emulates a 1588v2 master clock/slave recovery for proper point-to-point (PTP) message propagation and verification of packet-delay variation (PDV)
– Verifies SyncE frequency synchronization accuracy and Ethernet synchronization message channel (ESMC) message propagation
• Supports SFP and XFP pluggable optics, including 50 GHz C-band tunable XFPs
• Six T-BERD/MTS-5800 configurations:
– Single- and dual-port Ethernet versions
– With or without TDM/PDH interfaces
– Fully loaded TDM/PDH to 10 G Ethernet, SONET, and SDH         All-in-One Handheld Tool
• Industry’s smallest 10 G handheld instrument that supports Ethernet, SONET/SDH, PDH, and CPRI/OBSAI testing
– All test interfaces readily available
– Large screen (7 inches) to display test information
– Configure to best meet your needs
• State-of-the-art platform supports:
– Bluetooth to easily offload results
– WiFi for test set connectivity
– Store 1000s of reports
– FiberScope connectivity         Standard accessories: Main unit Soft carry case User manual Battery Power adaptor, warranty   All packages with Ethernet include Layers 1, 2, and 3 (Ipv4) and multiple streams (CoS). All pakcages with 10GE include LAN & WAN. All packages with DS1 include DS0 & PRI ISDN. All dual port packages contain (1) set of SFPs must be purchased for dual optical testing.     Ordering Infromation:      Please contact Lynn:

skype: lynn.hsv   QQ:1794629098
Mobile: 0086-18565752656 (any time)
website: www.hontek.net
