Sumitomo JR-6/JR-25 Jacket Remover Stripper

Specifications 1.Sumitomo JR-6/ JR-25 Jacket Remover Stripper

2.new and original

3.in stock!

Sumitomo JR-6/JR-25 Jacket Remover  Stripper   New and Original !  IN STOCK!     please contact Linda Xu:   skype: linda.hsv   Telephone: 0086-755-36934393   website: www.hontek.net   JR-6

Product name		JR-6
Applicable fiber	Optical fiber material	Silica glass
	Fiber count Coating thickness	Single fiber: Fiber coating ø0.25~ø0.4mm 2 to 12 fiber ribbon: Coating thickness 0.3~0.4mm (Used with fiber holders)
	Cladding diameter	125m
	Coating material	UV cure resin
Coating removal length		max.30mm
Power source		Battery operation (With BU-6): Nominal voltage7.4V, Nominal capacity 1620mAh DC operation (Power supplied from fusion splicer): DC9~15V *1 AC operation (With ADC-1220S): AC100~240V, 50/60Hz
Operating duration, Number of removal cycles per fully charged battery		Approx.10hours (In power save mode and with factory default temperature) Number of removal cycles per fully charged battery: Approx.200 *2
Battery charging time		Approx.2hours (JR-6 cannot be used while the battery is charged.)
Function		Temperature settings: 4 levels Power saving function: Normal Mode/Power Save Mode Battery remaining capacity is indicated in one of four levels when JR-6 is powered on.
Environmental conditions	Operating condition	Operating temperature: 0~+40°C, Humidity: 0~95% (Non-condensing)
	Storage condition	Storage temperature: -40~+60°C, Humidity: 0~95% (Non-condensing), Battery is not applicable.
Size		45(W)×38(H)×138(D)mm
Weight		Approx.235g (Including battery)

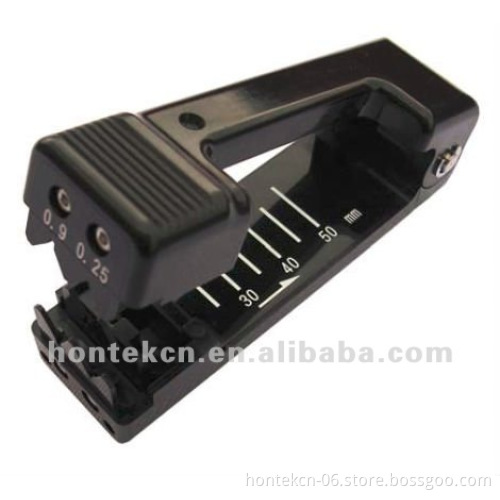

          JR-25       Features   Compact and Lightweight for Easy Handling Design Ensures Proper Removal Technique Protecting Fiber Integrity Deep Fiber Alignment Grooves Make Jacket Removal Easy Field Replaceable Blades Built-in Scale For Measurement Reduces Fiber Waste Can Be Used for Fiber Coatings of 250 and 900µm

Dimensions	25W x 86D x 28H (mm)
Weight	40g
Acceptable Coating Diameter	250 to 900µm
Acceptable Cladding Diameter	125µm
