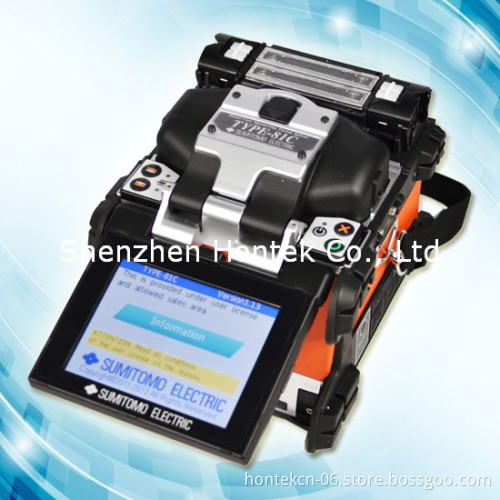

Japan Sumitomo Type-81C Fusion Splicer with fc-6s cleaver
  • Japan Sumitomo Type-81C Fusion Splicer with fc-6s cleaver
Japan Sumitomo Type-81C Fusion Splicer with fc-6s cleaver

Japan Sumitomo Type-81C Fusion Splicer with fc-6s cleaver

Delivery Time:
1 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Japan
Product Description
Product Description
Specifications type-81c,type-81c,Fusion Splicer,type-81c,Splicing machine , Sumitomo Type-81C Fusion Splicer Fusion Splicer, fusion splicer

Japan Sumitomo Type-81C  Fusion Splicer with fc-6s cleaver  !   Product Description Sumitomo Type-81C Fusion Splicer Sumitomo Type-81C Fusion Splicer   1.Sumitomo Single core Splicing machine Type-81C  Fusion Splicer
2.11 languages
3.splicing in every enviroment     Features : Downsized by 43% from conventional model 2.1kg weight with battery Ultra fast splicing(7sec.) Ultra fast heating(28sec.) G.657 fiber auto splicing function IP52 rating and 76cm drop on 5 faces Automatic arc calibration Touch screen operation Universal clamp for 250µm,900µm tight and loose buffer fiber User selectable heater clamp operation Support bi-directional splicing operation Equipped with onboard training vedio Upgrades software via internet
Product name TYPE-81C
Optical fiber requirements Material Silica glass
Profile types SMF (ITU-T G.652), MMF (ITU-T G.651), DSF (ITU-T G.653), NZDSF (ITU-T G.655), BIF (ITU-T G.657), EDF
Fiber diameter Cladding diameter: 80μm~150μm, Coating diameter: 100μm~1, 000μm
Applicable fiber or cable size up to ø1, 000μm Drop cable (2.0×3.1mm) Indoor cable (2.0×2.0mm)
Cleave length 5~16mm 10mm
Standard performance Splice loss (typical)*1 SMF: 0.02dB, MMF: 0.01dB, DSF: 0.04dB, NZDSF: 0.04dB
Splicing cycle time (typical) 7sec. (Quick mode), 7.5sec. (SMF standard mode), 8sec. (Auto mode)
Heating cycle time (typical) 28sec.
Splice & Heat cycles*2 Approx.200
Fiber view & magnification Two CMOS cameras observation 320X (zoom:700X) for X or Y single axis view, 88X for both X & Y dual axis view
Programs Splicing programs Max.300
Heating programs Max.100
Functions Loss estimation Provided
Splice image capture/ Splice data storage 64 images/10, 000 splice data
Proof test 1.96N (200gf)
Attenuation splicing 0.1dB to 15dB in 0.1dB increments
Universal clamps for 250μm, 900μm tight & loose buffer fiber Provided
Reversible coating clamps Provided
Dual automatic independent heaters Provided (US patent 7, 412, 146)
User-selectable heater clamp operation Provided
Onboard user training video Provided
Automatic arc calibration Automatically compensates for environmental condition changes
Arc test Provided
Display of remaining Splice & Heat cycles Provided (Battery mode)
Remote interactive maintenance Provided
Size/Weight Size 120(W)×154(D)×130(H)mm (without anti-shock rubber)
Weight 1.8kg (without battery), 2.1kg (with battery)
Monitor 4.1" touch screen color LCD display
Terminals DC output DC12V (for JR-6)
USB port USB 2.0 (mini-Btype)
Storage media SD/SDHC memory card
Power supply AC input 100~240V, 50/60Hz (ADC-1430)
DC input 10~15V
Battery module Li-ion 11.1V, 4, 600mAh (BU-11)
Operating condition Altitude:0~6, 000m, Temperature: -10~+50°C, Humidity: 0~95% (non-condensing), Wind velocity up to 15m/s
Storage condition Temperature: -40~+80°C, Humidity: 0~95% (non-condensing), Battery: -20~+30°C (long term)
Electrode life 3, 000 arc discharges*3
  *1:When the fibers used are identical to Sumitomo's fibers. *2:Splice & Heat cycles may vary depending on the battery status and the operating environment. *3:Electrode life may vary depending on the operating environment. Environmental Durability*
Shock resistance Drop from 76cm on 5 faces (excluding top face)
Water resistance Equivalent to IPx2 (Operates normally after being exposed to water dripping at 3mm/min. for at least 2.5min on each of 4surfaces tilted at 15º)

Dust resistance

Equivalent to IP5x (Operates normally after 8hours in a dust chamber containing dust of particle size 25μm or below)



  Packaging & Shipping    Sumitomo Fusion Splicer Type-81C Package
With these accessories:
1. main unit      Type-81C/1pc
2. AC adapter        ADC-1430/1pc
3. cooling tray         1pc
4. charging cord          1pc
5. electrode(spare)         ER-10/1pc
6. battery module         BU-11/1pc
7. fiber cleaver             FC-6SE/1pc
8. operating CD manual       1pc
9. carrying case              1pc
10. 1 year's warranty       Japan Fujikura  FSM-80S  Splicing machine / Fusion Splicer with best price   The FSM-80S is core-to-core alignment single fiber splicer succeeding to FSM-60S. In addition to ruggedized concept, which 60S created, the 80S has a series of new features, such as "Automated wind-protector and tube-heater" for quicker splicing cycle as well as fewer operation steps, "innovative carrying-case design" for
quicker preparation, "powerful Li-ion battey" for longer operation, high resolution bigger LCD monitor, and "built-in operation manuals" in various languages. Market is from backbone network installation to opto-electronics components production for quality splice.
Applicable fibres
SM (ITU-T G.652 & G.657), MM (ITU-T G.651),DS (ITU-T G.653),
NZDS (ITU-T G.655),Others
Fibre Count
Single
Cladding diameter
80 to 150μm
Coating diameter
100 to 1000μm
Fibre cleaved length
5 to 16mm using Sheath Clamp A, B or 5 to13mm using FH-60-250, FH-60-900
Actual average splice loss
0.02dB with SM, 0.01dB with MM, 0.04dB with DS, 0.04dB with NZDS.
Splice time
7sec:SM FAST mode, 12sec :SM AUTO mode, 15sec:AUTO mode
Return loss
60dB or greater
Splicing modes
100 splicer modes are available
Splice loss estimate
Several types of core deformations as well as core axis offset are taken into account for accurate loss estimate.
Attenuation splice function
Intentional high splice loss of 0.1dB to 15dB (0.01dB step) can be made for an
inline fixed attenuator
Storage of splice result
The last 2000 results to be stored in the internal memory.
Magnification
X / Y (300X magnification), or both X and Y simultaneously (160X magnification)
Viewing method
By two CMOS cameras for intersecting fiber viewing and 4.73 inches TFT colour LCD monitor
Tension test
1.96 to 2.25N
Operating condition
0-5000m above sea level, 0-95% RH and -10 to 50°C respectively.
Tube heater
Built-in auto-start tube heater with 10 heating modes and up to 20 for reference
Tube heat time
13-15sec. with FP-03 protection sleeve. Total memory of 30 heating modes are available
Applicable protection
sleeve length
60mm, 40mm and a series of micro sleeves.
No. of splice/heating
with battery
200 times of splicing and heat shrinking under with BTR-09
Power supply
Auto voltage selection from 100 to 240Va.c. or 10 to 15Vd.c. with ADC-18. 14.8Vd.c. with BTR-09
Terminals
USB2.0 ( Mini-B) for data and video signal transfer to PC.
Wind protection
Up to 15m/s wind velocity
Dimensions
146(W) x 159(D) x 150(H) mm
Including wind protector, monitor, and rubber protector
Excluding rubber foot
Weight
2.5 kg, with ADC-18 AC adaptor
2.7 kg, with BTR-09 battery
Electrode life
3000 arc-discharges

                                              Our main products as below: 1. FUSION SPLICER: Sumitomo (Type-81C/39/-66/); Fujikura (fsm-70S/70R); Fitel S178A; HSV-6000
2.OTDR: EXFO (FTB-1/AXS-110/AXS-100/ FTB-200/FTB-500); JDSU (MTS-2000/4000/6000/8000); YOKOGAWA (AQ7275)
3. POWER METER (PPM-350c, FPM-300, HSV300-P); LIGHT SOURCE (FLS-300, HSV300-L); VFL (FLS-241, HSV- 321); Multi Loss tester (FOT-930, FOT-302)
4. Anritsu site master S331D, S331L, S331E,S332E.
5. Fiber cleaver (CT-30A/FC-6S), adapter, battery, electrode, connector, fiber tool kits
6. Fiber cable, patch cord, adapter, closure, pigtail, optical switch, patch panel, etc..
7.Maintainance and repair ,calibration service for the EXFO, Sumitomo, Fujikura, Anritsu.
