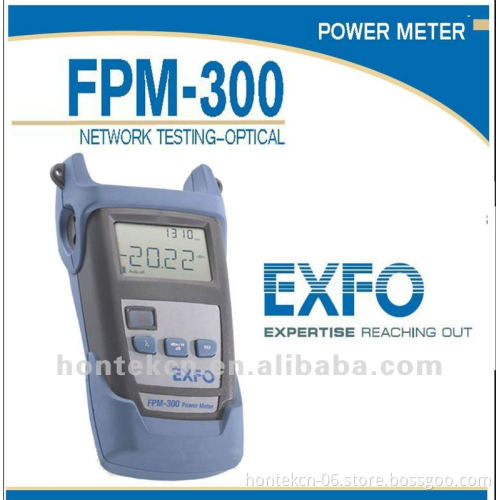

EXFO Optical Power Meter FPM-300 series (FPM-302/FPM-302X)

EXFO Optical Power Meter FPM-300 series  (FPM-302/FPM-302X) IN STOCK!

Model	FPM-302	FPM-302X
Power meter port	Ge	GeX
Power range(dBm)	10 to −60	26 to −50
Range displayed (dBm)	Down to −65	Down to −50
Number of calibrated wavelengths	10	10
Power uncertainty	± 5 % ± 1 nW	± 5 % ± 10 nW
Resolution (dB)	0.01	0.01
Automatic offset nulling	Yes	Yes
Warmup time(s)	0	0
Display units	dB/dBm/W	dB/dBm/W
Automatic wavelength recognition	Yes	Yes
Screen refresh rate (Hz)	3	3
Tone detection (Hz)	270, 1 k, 2 k	270, 1 k, 2 k
Battery life (hours) (typical)	> 300	> 300
Warranty and recommended calibration interval (years)	3	3
General Specifications
Size (H x W x D)	18.5 cm x 10.0 cm x 5.5 cm	71/4 in x 4 in x 21/8 in
Weight	0.4 kg	0.9 lb
Temperature operating	-10 °C to 50 °C	(14 °F to 122 °F )
storage	-40 °C to 70 °C	(-40 °F to 158 °F)
Relative humidity	0 % to 95 % non-condensing

    NOTES a. Guaranteed unless otherwise specified. b. All specifications valid at 1550 nm and 23 °C ± 1 °C, with an FC connector. c. In CW mode; sensitivity defined as 6 x rms noise level. d. Wavelengths: 830 nm, 850 nm, 980 nm, 1300 nm, 1310 nm, 1450 nm, 1490 nm, 1550 nm, 1590 nm and 1625 nm. e. Traceable to NIST; FPM-302X: up to 20 dBm. f. From 10 dBm to –50 dBm. g. From 26 dBm to –35 dBm. h. Power of > –40 dBm for FPM-302, and of > –25 dBm for FPM-302X. i. For ± 0.05 dB and temperatures of > 18 °C. j. At 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm and 1625 nm; power of > –50 dBm for FPM-302, and of > –40 dBm (typical) for FPM-302X.
