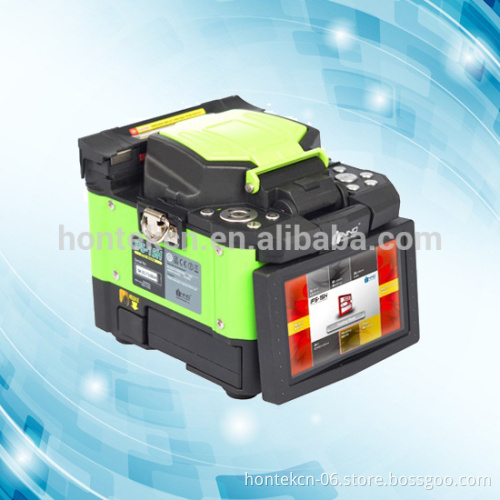

INNO IFS-15H ARC Fiber Optical Fusion Splicer

Specifications INNO IFS-15H ARC Fiber Optical Fusion Splicer

1.2.8KG weight

2.9Sec Splicing

3.USB master port

4.Operates in Bi-Direction

INNO IFS-15H Fiber Optical ARC Fusion Splicer   Please contact with: Lynn Skype: lynn.hsv    QQ: 1794629098 Tel: +86-18565752656(any time)     Product Description  Features: 2.8KG weight, light and handy, user friendly, easy to operate Very fast splicing time, only 9 seconds Operates in Bi-Directional view. Real-time calibration of arc-discharge Large capacity Lithium-Ion Battery Friendly GUI, easy to operate Artificial technology, auto discriminate fiber and auto select fusion mode Auto compensate arc-discharge according to temperature and air pressure USB master port, easy to upgrade software Entire environmental protection design conforms to the ROHS standard High density windproof design, newest fusion technology (High: 168mm, wide: 145mm)

Splicing Method	Core alignment
Applicable fiber	SM(ITU-TG.652),MM(ITU-TG.651),DS(ITU-T G.653),NZDS(ITU-T G.655)
Average loss	SM(0.02dB),MM(0.01 dB),DS(0.04 dB),NZDS(0.04 dB)
Return loss	>>60 dB
Splice time	SM fusion average 9s
Cleaved length	The fiber which coat-diameter is less than 0.25mm:8-16mm
The fiber which coat-diameter is lager than 0.25mm	least 16mm
Operating environment	elevation 0-5000meter,95% relative humidity,-10—50C
Magnification	XY style: 150power
	X/Y :300 power
Monitor	2CCD camera system,5inch LCD
Splice Programs	40 user mode,10 factory preset mode
Coating Diameter	100-1000um
Clading Diameter	80-150um
Splice memory	Can save 2000 record
Fiber Display	X/Y or XY,single X,Y
Proof test	2N(standard)
Heating programs	Preset 10kind heating mode
Heating time	FP-03 typical heating time 30s
Protection sleeve	60mm,40mm
Battery	Typical fusion 350 times
Power supply	AC 100-240V input or, DC 12-15V
Data output	USB master device and AV
Wind protection	The max wind speed 15m/s
size	168x145x160mm
weight	2.8Kg

Packaging & Shipping

Name	Model	Quantity
Main unit	IFS-15	1
AC adapto	ACM-12	1
Charger	GM-180200	1
Battery pack	LBT-20	1
AC Power cord	ACC-15	1
Spare electrode	E-50	1
Carrying case	NBX-25	1
High Precision Cleaver	VF-77	1
Cooling groove	CG-12	1
User manual	MB-9XX	1
Fiber stripper	CFS-2	1
