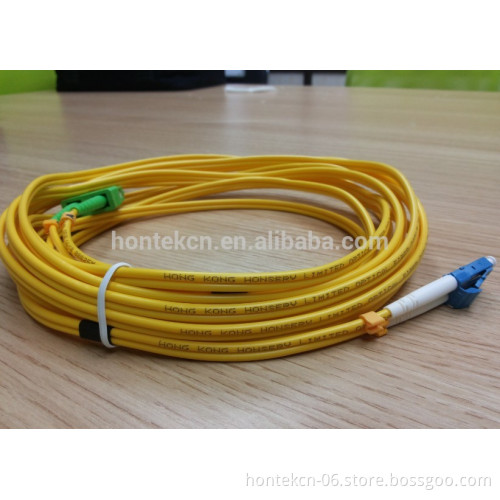

Optical Patch Cord/Fiber Optical Patch Cord/ SM SX 3m5m10m

Specifications Optical Patch Cord/Fiber Optical Patch Cord

Low insertion lossLow return loss

Various connector types available

Optical Patch Cord/Fiber Optical Patch Cord SM SX 3M5M10M                  contact information Nancy Liu Tel : 086-0755-36934393 skype:   nancy.hsv               Specifications

Type	Standard,Master
Style	LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC        Duplex MTRJ/Female, MTRJ/Male
Fiber Type	9/125 SMF-28 or equivalent (Single mode) OS1 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G  (Multimode) OM3
Cable Type	Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH
Polishing Manner	UPC,SPC,APC (8°& 6°)
Insertion Loss	≤ 0.1dB (For Single mode Master) ≤ 0.25dB (For Single mode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750
Return Loss (For Single mode)	UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750
Repeatability	±0.1dB

      Our Services 1. FUSION SPLICER: USA Comway C10; Sumitomo (Type-81C); Fujikura (FSM-80S/70S/70R); Fitel S178A; HSV-6000 2.OTDR: EXFO (FTB-1/AXS-110/AXS-100/ FTB-200/FTB-500); JDSU (MTS-2000/4000/6000/8000); YOKOGAWA (AQ1200/AQ7275) 3. POWER METER (PPM-350C, FPM-300, HSV-300P); LIGHT SOURCE (FLS-300, HSV-300L); VFL (FLS-241, HSV-321); Multi Loss tester (FOT-930, FOT-302) 4. Anritsu site master S331D, S331L, S331E, S332E. 5. Fiber cleaver (CT-30A/CT-30/CT-05/FC-6S), adapter, battery, electrode, connector, fiber tool kits 6. Fiber cable, patch cord, adapter, closure, pigtail, optical switch, patch panel, etc.. 7.Maintainance and repair, calibration service for the EXFO, JDSU, Sumitomo, Fujikura, Anritsu
