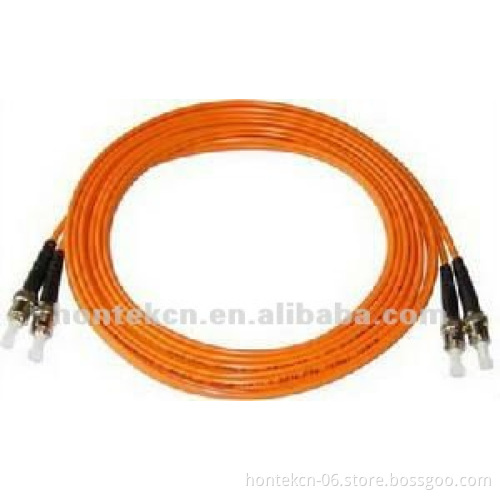

FTTH, indoor, outdoor glass optical fiber/ fiber optic cable

Specifications FTTH, indoor, outdoor glass optical fiber cable

1.FTTH,FTTB,FTTO-Fibre to The Home,Building,Office.

2.SUPPLY 10000 KILOMETER

FTTH, indoor, outdoor glass optical fiber/fiber optic cable   kitty skype: kitty.hsv   1. Product Characteristics (Overall)                                                   1) singlemode fiber size parameters ¦                         Fiber Type ¦  ITU –T G.657A                                 Fiber Specification ¦  62.5/125/245 μm        Core Diameter ¦  62.5 +/- 2.5 μm     Core Non–Circularity ¦  ≤ 5 %     Mode Field Diameter ¦  8.6~9.5 +/- 0.4 μm     Clad Diameter ¦  125.0 +/- 0.7 μm     Clad Non–Circularity ¦  ≤ 1.0 %     Core/Clad Concentricity Error ¦  ≤ 0.5 μm     Primary Coating Diameter ¦  245 +/-10 μm     Clad/coating Concentricity Error ¦  ≤ 12.5 μm     Color Code ¦  1.Blue   2.Orange  3. Green  4. Brown 2) Non-metallic strengthening¦         Total number of root ¦  2 Root     Material ¦  FRP - Glass Fiber Reinforced Plastic Rods     Diameter ¦  0.35 +/- 0.02 mm 3) Strengthening Messenger Wire ¦       Total number of root1 Root ¦  1 Root     Material ¦  Phosphating steel wire     Diameter ¦  1.20 +/- 0.05 mm 4) Outer Jacket ¦           Material ¦  LSZH – Low–smoke halogen–free flame retardant polyolefin     Color ¦  Black & White     Diameter ¦  2.0×6.1 +/- 0.20 mm     Marking ¦  Per Customer Request 5) Packaging ¦          Cable Net Weight ¦ 23.0  kg/km     Product Length ¦ 1640FT(500m)/Plywood Drum/Cardboard Carton                                    3280FT(1000m)/Plywood Drum/Cardboard Carton
                                   6562FT(2000m)/Plywood Drum/Cardboard Carton
2. Optical Characteristics (Overall)                                                               1) Single–mode fiber cutoff wavelength ¦  ≤ 1250 λc/nm  2) Single–mode fiber cutoff wavelength ¦  ≤ 1260 λc/nm  3) Maximum Attenuation @ 1310 nm ¦  ≤ 0.40 dB/km  4) Maximum Attenuation @ 1550 nm ¦  ≤ 0.30 dB/km  5) Dispersion Coefficient 1288~1339 nm ¦   |D| ≤3.5 ps/nm·km  6) Dispersion Coefficient 1271~1360 nm ¦   |D| ≤5.3 ps/nm·km  7) Dispersion Coefficient 1550 nm ¦   |D| ≤18 ps/nm·km  8) Zero dispersion Wavelength ¦  1300~1322 nm  9) Zero dispersion slope ¦  ≤0.092 ps/nm²×km  10) Light source continuity ¦  Continuous 3. Fiber Mechanics Characteristics  1) To allow the construction of short–ermtensile force ¦  ≤ 200 N  2)  runs allowed when used long–term tensile strength of  ¦  ≤ 100 N   3) To allow the construction of shortt–erm flattening force ¦  ≤ 2200 N/100mm  4) Long–term pressure allowed when run using Chen Shuib–ian ¦  ≤ 1000 N/100mm  5) Static (working) minimum bend radius ¦  ≥ 30 mm  6) Dynamic (installation) minimum bend radius ¦  ≥ 60 mm  7) Storage Temperature Range ¦  –20 ~ +70  °C  8) Install the temperature range ¦  –5   ~ +40  °C
