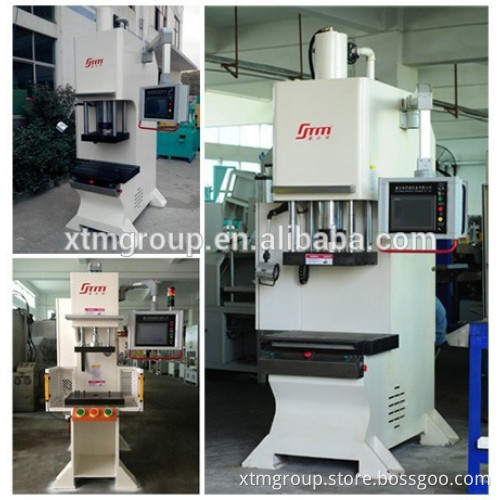

semi-automatic hydraulic press machine for fitting ,punching,stamping,shaping and samll parts of the press fit assembly

modle	XTM107S-10T	XTM107S-20T	XTM107S-30T	XTM107S-40T	XTM107S-50T
Nominal force output(ton)	10	20	30	40	50
maximun hydraulic working press(mpa)	21	21	21	21	21
back storke force(ton)	3.1	4	4.8	5.1	5.7
height of tableabove floor(mm)	870	870	870	870	870
biggest operational height(mm)	500	600	600	600	600
maximum stroke if the ram(mm)	400	400	400	400	400
dimensions of table left-right(mm)	550	600	700	700	800
dimensions of table  front-back (MM)	400	400	450	450	550
speed of slide   --down(MM/s)	>150	>188	>178	>178	>168
working speed (MM/s)	>24	>19	>16	>14	>13
speed of reruming(mm/s)	>126	>125	>125	>116	>120
overal demensions of the machine(mm)	750*1000*2350	800*1000*2500	880*1100*2650*2650	880*1100*2700	1050*1200*2800
power of the motor(kw)	2.2	2.2	3.7	3.7	5.5

  featrue: 1.the serues hyraulic perss to 2-20mpa liqid pressure as power source an externa three-phase ac220 60hz ac380v 50hz or ac power:   2. drivenby hydraulic pressure and generates by a motor thes machine adopts advanced dual oil cylinder and hydraulic circuit causes low heat while operateing at a speed of more than 150m per seconf    3.gydraulic pressure actuation of 1-140mpa three-phaws alternating-current supply ac380v 50hzor ac220 60hz titak cibsynotions of electricity of less then 3.7kw    4.the well  constructed yet practically designed ergonamic frame pricides stability and ease of use    5.pressin force cutting stroke and die height can all be manually adjusted to the operators comfort  level    6.great functionality incluiding an intelligent counter force measurement min itor andintelligent temperature cintroller can all be added as a custom add-on   7.rage of output force 15ft-100ft (optionally)   scope of application   with nyktu-purpose of press the series hydraulic press could be comprehensively used in a   varuety of materials punching stamping shaping riveting bending shear tension  barious small   parts if the press fit assembly
