C Frame Pressing Machine Used In PCB Manufacturing With ISO / CE Approved

Specifications C Frame Pressing Machie:

1.Precise Pressure Detector;

2.Precise Temperature Control;

3.CE/ISO;

4.20 Years Factory.

C Frame Pressing Machine Used In PCB Manufacturing With ISO / CE Approved

Features

      1.Adopts operation mode of double-button switch;       2.Adjustable pressure and stroke;      3.Control modes of inching and semi-automatic;      4.Optional timer control or program control to insure processing precision;      5.Easy, simple to understand and  operate as it works stably;      6.Core Hydraulic System, low noise, lower consumption of electricity.

Images

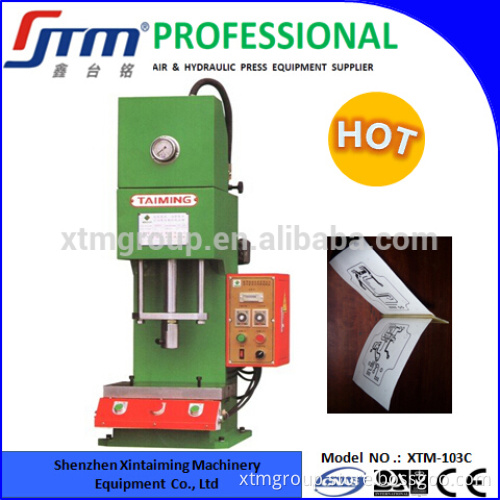

normal type:                                      C frame hydraulic press machine with touch screen interface:                                         -Machine Detail introduction                                      control panel with pressure reading screen:                                                        Pressure detector:

Technical Specifications



Items	XTM-103-3T	XTM-103-5T	XTM-103-10T
Pressure/T	1-3	1.5-5	3-10
Table Size/mm	350*240	350*240	400*300
Max.operating height	245mm	245mm	300mm
Cylinder Stroke/mm	150	150	200
Axle hole size/mm	ø25	ø25	ø30
Power supply	3ø380VAC,50/60Hz	3ø380VAC,50/60Hz	3ø380VAC,50/60Hz
Motor Power/KW	2.25	2.25	3.75



Scope of Application

        Multifunctional Powerful C-frame Hydraulic Press Machine From Alibaba China Supplier can be widely used in:        1. Press fitting for PCB assemblies.       2. Alibration and riveting,       3. Forming of plastic materials ,       4. Blanking, strentching and embossing of plate       5. Pressing of plastic and powder product.



Packaging


1.Inner package:stretch film 2.Outside package:standard export wooden cases, 3.Packaging list provided

About Us

  Shenzhen Xintaiming Machinery Equipment Co., Ltd is specialized in the designing and making
all kinds of hydraulic and pneumatic presses.    1) CNC Servo press series   2) CNC hydraulic machines    3) MD/IML 3D punching machine    4) IMD/IML hot press molding machine     5) High speed punching machine    6) Hydraulic stamping/embossing/cutting /drawing press machine and so on     Our products have been exported to Germany, Hungary, Russia, India, Indonesia, Thailand, Vietnam,
the United States, Mexico, Brazil, Italy, Saudi Arabia, Bahrain, South Africa, Australia, Iran and so on
more than 30 countries and regions.


Benefits and Advantages



Why Choose Us



        Key aspects of the X.T.M success are:  Continuous investment in research & development (more than 7% of profits).

 First class quality of raw materials .

Specialized workforce (more than 150 employees),

Wide market service network throughout the country



7500sq meter manufacturing facility, moe than 150 full time employees, X.T.M is fully capable of handling the growing demand worldwide, and offering excellent technology, solid qualit at highly competitive prices.

Our Serive




 1. We use the world-famous brand accessories like Mitsubishi, Schneider, Siemens, Yuken, Omron etc.    Before packing machine, we debug machine by letting the machine run for 12 hours.   2. Before packing machine, the machine will run one day for testing oil leakage, repeat error, and electrical  parts performane. meanwhile, there will be video giving to you (FAT video).   3. Any error happens within the period of guarantee, we offer the according parts for free.    4. we will offer overseas service if we(the Two Parties) can come to an overseas service agreement.

FAQ

  Q1: Are you a factory or trading company?  A: We are a factory.   Q2: Where is your factory located? How can I visit there?  A: Our factory is located in E Gong Ling West RD. 6-12, Liu Lian Community, Pingdi Town, Longgang District, Shenzhen China. You can fly to Shenzhen Airport and then take the metro or city bus to our factory. Warmly welcome to visit us!   Q3:How does your factory do about quality control? A: We have been CE/ISO certificated and have a complete quality controlling system. We test all the accesories to ensure the quality, and adopt the advanced assembly technology during production and debug before shipping.   Q4: What's the payment terms? A:T/T, 40% deposits; 60% balance before deliverying is available      Strong research and development ability,  powerful marketing ability, commitment, expertise and dedication. When it comes to hydraulic press or pneumatic based press machines, Please feel
no hesitate to contact with X.T.M.
