C Frame Hydraulic Press Used In Aluminum Cooling Fin Reshaping With CE/ISO

Specifications Hydraulic Press:

1.C Frame Single Column;

2.Custom-make Available;

3.CE/ISO;

4.20 Years Factory.

C Frame Hydraulic Press Used In Aluminum Cooling Fin Reshaping With CE/ISO

Features

1.The frame adopts integrity welding technology with better regidity and stability of machine while
wide convenient operation space;     2.Pressing force, stroke of cutting, dwell time, die height could be adjusted manually comply with
pratical demand;            3.Selectablly, a load cell and display could be installed so as to display processing preasure, obtains
a expected effect;       4.According to real processing request, a electronic ruler and security curtain light could be added
so as to display movement situation of hte cylinder precisely.

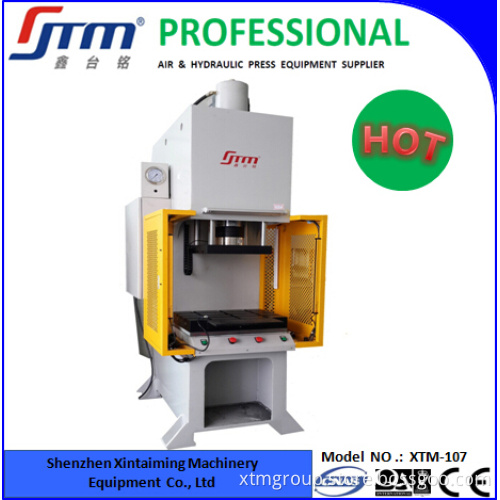

 Machine pictures









Application scope:    1.Embossing, forming, shalloe draw, shaping and pressure assembling of metal or non-metal parts.   2.Press fitting of motor and stators, electronic connectors and electric parts.   3.Pressing of glasses, locked modes and hardware parts , and so on.


Production Advantages   1.Enhance stability

2.Low consumption, low maintainance

3. Safety, convenient operation

4.Available pressing pressure display
Technical parameter (Technical parameter kan be customized according to client's need ):

Model			XTM107S-10	XTM107S-20	XTM107S-30	XTM107S-50
Nominal Force			10T	20T	30T	50T
MAx. Hydraulic Working Pressure			12.5MPa	11.1MPa	15Mpa	16MPa
Knock-out Force			1.9T	2.5T	3.7T	5T
Worktable Height			750mm	750mm	750mm	750mm
Max. Operational Height			400mm	500mm	500mm	500mm
Max. Stroke			300mm	300mm	300mm	300mm
Dimensions of the Table	L-R		500mm	600mm	600mm	600mm
	F-B		400mm	400mm	400mm	400mm
Speed of Slide	Descending Speed		≥ 150mm/s	≥140mm/s	≥180mm/s	≥180mm/s
	Pressing Speed		≥25mm/s	≥12mm/s	≥14mm/s	≥9mm/s
	Returning Speed		≥132mm/s	≥100mm/s	≥120mm/s	≥96mm/s
Overall Size of the Machine			650×720×1850(mm)	650×720×1900(mm)	650×720×1900(mm)	650×720×1900(mm)
Power of Motor			2.2KW	3.7KW	3.7KW	5.5KW


Related Machine
        Company Advantages
ShenZhen Xintaiming Machinery Equipment Co,Ltd .  Shen professional manufacturer of hydraulic and pneumatic presses, we are specialized in the
designing and making:

Hydraulic cutting /punching/molding/bending/hot press machine High speed punching machine CNC C-type hydraulic machine Servo press series IMD/IML hot press molding machine IMD/IML 3D punching machine   1. We manufactures the hydraulic and pneumatic press machine and provides the overall service 2.We have a body of engineers who have years of experience 3.Presses can be customized to fit your specific needs and specifications 4. Large-scale factory   Factory overview

workshop

Exhibition     Other Products (Please FOLLOW the following websites to watch our Involvement Videos about XTM Series Press Machine!)   http://www.tudou.com/programs/view/irSJOA0jcuw/ XTM-105H Series membrane cutting
http://www.tudou.com/programs/view/v_HWbn_AT8I/ XTM-106 Series Die casting parts TRIMMING MACHINE

http://www.tudou.com/programs/view/uutePmlLzpU/ XTM-109 Series IMD Machine

http://www.tudou.com/programs/view/_dYscK9jDe0/  XTM-106K Series Wood Die Cutting Machine

  So if you are interested in our machines and have any question, please don't hesitate to contact with us. We warmly welcome to visit our factory!
