Up-stroke H Type Hydraulic Press Used In Metal Products

Specifications H Type Hydraulic Press

Optimized design of hydraulic system

Upper stroke type, effectively lower overall height

Fr. Shenzhen

Up-stroke H Type Hydraulic Press Used In Metal Products

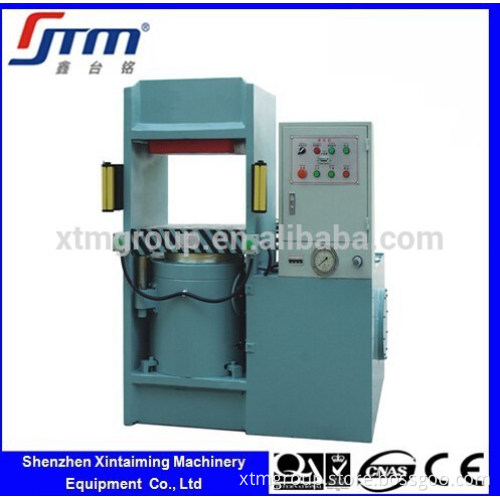

Product Description XTM-TCK series H type hydraulic press is a ideal equipmnt used in metal machinery manufacturing.
H type hydraulic press is characterized by sensitive action, safe and reliably operation.
   Monoblock,Welded steel frame rigid to reduce deflection movment.

   Operated by double-button switch.

   Selector switch modes of operation:  jog (setup) and run (cycle).

   Flexibly adjustable pressure and stroke.

   Machine dwell time and stroke could be set specially as per processing requirements.

   Idea of doubled SLC(Security Light Curtain) makes it safe of operation.

   Emergencey switches for safety stop;Protective fence and the safety interlock can beadded to upgrade the secure.

   All pipes, flange and joint with vibrations proof and leakage proof design and setting.
         Highlight of TCK H Type Hydraulic Press

      1.    TCK series adopts welded streel frame type structure, rigid to reduce deflection movment.

      2.    Move-up type of cylinder can effectively lower the overall height of the machine body.

Technical Parameter

Model		Unit	TCK-100	TCK-200	TCK-300	TCK-500	TCK-600	TCK-1000
Cylinder nominal force		KN	1000	2000	3000	5000	6000	10000
Max. hydraulic pressure		MPa	21	20	21	25	25	25
Max. stroke of ram		mm	200	200	200	200	200	250
shut height	Max.	mm	380	420	420	450	450	450
	Min.		180	220	220	250	250	250
dimension of table	L-R	mm	430	530	580	700	750	900
	F-B		430	530	580	700	750	900
Speed of slide	moving up	mm/s	115	115	115	100	100	100
	return		100	100	100	120	120	120
Overall size	L-R	mm	1080	1200	1265	1545	1650	1830
	F-B		1150	1150	1150	1395	1440	1440
	H		1340	1510	1630	1885	2070	2380
Power of motor		KW	5.5	7.5	7.5	11	15	18.5
Approx. total weight		T	2.51	2.8	3.2	5.5	8.7	12.3

Note: the specifications of the H type hydraulic press is customization supported.   Scope of Application    1. H type hydraulic press designed for pressed precise watchcase, watchband, dishware, spectacle frame, jewelry, medal, picture frame, circuit board and other products.
2. TCK H type hydraulic press is especially suitable for embossing, laminating and other industries.
