Top Quality H Frame Metal Forming Hydraulic Press Machine For Metal Machinery With Good Price

Specifications welded streel, H frame structure;

capacity from 100T to 1000T;

Optimized design of hydraulic system;

for metal forming;

Top Quality H Frame Metal Forming Hydraulic Press Machine For Metal Machinery With Good Price     Product Description

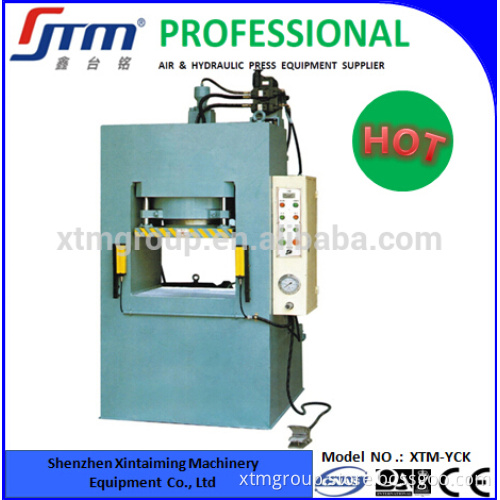

       XTM-YCK series Hydraulic Press Machine is a new generation hydraulic press for metal forming machinery. H frame structure with  optimized design hydraulic system, the hydraulic press machine
is characterized by sensitive action, safe and reliably operation.   Monoblock,Welded steel frame rigid to reduce deflection movment.

  Operated by  food switch.

  Selector switch modes of operation:jog (setup) and run (cycle).

  Flexibly adjustable pressure ,dwell timeand stroke.

  Idea of doubled SLC(Security Light Curtain) makes it safe of operation.

  Emergencey switches for safety stop.

  Protective fence and the safety interlock can be added to upgrade the secure.

  All pipes, flange and joint with vibrations proof and leakage proof design and setting .


hydraulic system:                             control unit:                                                                                                                                electric control system:

                                                      Technical Parameter

Model		Unit	YCK-100	YCK-200	YCK-300	YCK-500	YCK-1000
Cylinder nominal force		KN	1000	2000	3000	5000	10000
Max. hydraulic pressure		MPa	21	20	21	25	25
Max. stroke of ram		mm	200	200	200	200	200
shut height	Max.	mm	420	420	420	450	450
	Min.		200	220	220	250	250
dimension of table	L-R	mm	420	520	600	700	900
	F-B		420	520	600	700	900
Speed of slide	moving up	mm/s	115	115	115	100	100
	return		100	100	100	120	120
Overall size	L-R	mm	920	1120	1250	1450	1760
	F-B		1080	1210	1270	1400	1750
	H		1950	2080	2280	2130	2720
Power of motor		KW	5.5	7.5	7.5	15	18.5
Approx. total weight		T	2.5	3.2	4.5	7.8	33

  Scope of Application   1. XTM-YCK series Hydraulic Press Machine is specially designed for metal forming machinery, such as precise watchcase, watchband, dishware, spectacle frame, jewelry, medal, picture frame, circuit board and other products.
2. XTM-YCK hydraulic press machine is specially suitable for embossing, laminating and other industries.









X.T.M Advantage Shenzhen Xintaiming Machinery Equipment Co.,Ltd

Shenzhen Xintaiming Machinery Equipment Co.,Ltd ,the leading company of air and hydraulic machine in China .  We have coustomers distribute in Germany, Hungary, Russia, India, Indonesia, Thailand,   Vietnam,  USA, Mexico,Brazil,Italy, Saudi Arabia, Bahrain, South Africa, Australia, Iran and so on more than 20 countries .

       Key aspects of the X.T.M success are:  Continuous investment in research & development (more than 7% of profits).

 First class quality of raw materials .

Specialized workforce (more than 150 employees),

Wide market service network throughout the country

Workforce & Facility
7500sq meter manufacturing facility ,moe than 150 full time employees , X.T.M is fully capable of handling the growing demand worldwide ,and offering excellent technology, solid qualit at highly competitive prices.



  Quality Assurance



Exibition & Visit

  Cooperative Partners

Strong research and development ability,  powerful marketing ability, commitment, expertise and dedication.  When it comes to hydraulic / pneumatic based press machines, Please feel no hesitate to contract with X.T.M.
