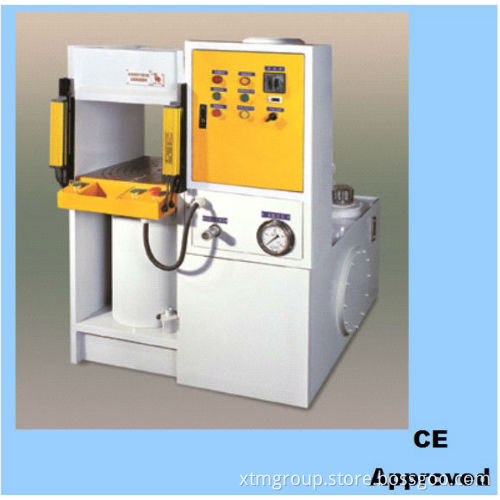

Frame type oil press(XTM-108-YDK-100T/200T/300T/500T/700T)

Specifications Frame type oil press

High precision;

Powerful;

Hydraulic Press

High efficiency;

Frame type oil press(XTM-108-YDK-100T/200T/300T/500T/700T)   Feature and advantages : 1.Precise four-column three-platen frame, the grad of parallelism between the Active platen and the work platform could reach up to more than 0.08mm under the control mode that the three platen are controled by the four precise guide sleeves; 2.Manual & Semi-automation operation system, front stretched out control platform, emerbency buttons, security curtain light, considerate design for overall security; 3.Instrument of loading material and blow facility, special design concept for special processing work; 4.Pressing force, stroke of cutting, dwell time, die height could be adjusted manually comply with pratical demand; 5.Standard idler wheel and goblet shaped machine feet, convenient to move.   Effective Four column Plastic / Metal Hydraulic Punching Press Machine Application Scope :  1.Die cutitng and shaping of burrs of varioius Amasilium alloy die casting products;             2.Overall cutitng of plastic products, forming of plastic material, such as blanking, stretching and embossing of plates,  pressing of plastic and powder products, and other similar applications;                3.It is comprehensively used in auto and motorcycle fitting sectors.       Effective Four column Plastic / Metal Hydraulic Punching Press Machine Technical  parameter:

Model	A(mm)	B(mm)	C(mm)	D(mm)	E(mm0	F(mm)	G(mm)	H(mm0	I(mm)	J(mm0	L(mm0
XTM-106K  20T	800	780	1050	2200	600	150	120	400	200	150	500
XTM-106K  30T	800	780	1050	2230	600	150	120	450	200	150	500
XTM-106K  40T	850	780	1050	2280	600	200	150	500	250	200	600
XTM-106K  50T	850	780	1050	2300	600	220	150	500	250	200	600
