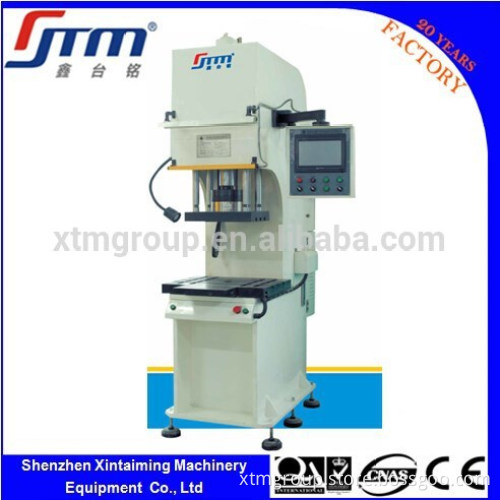

Hydraulic Power Source and Laboratory Use type Highly CNC Laboratory Hydraulic Press

Specifications hydraulic press machine for laboratory

1.Highly CNC control

2.High performance

3.Long service life

4.Of high quality

Hydraulic Power Source and Laboratory Use type Highly CNC Laboratory Hydraulic Press
Features:

1.Drived by hydraulic pressure generated by motor, adopts advanced dual oil cylinder and hydraulic circuit, causes low heat while operates at a speed of more than 150mm per second;   2.Hydraulic pressure actuation of 1-14MPA, three-phase alternating-current supply, AC380V 50HZ or AC220 60 HZ, total consumptions of electricity of less than 3.7KW(Power supply as per customer request also).   3.The frame adopts integrity welding technology with better regidity and stability of machine while wide convenient operation space;   4.Pressing force, stroke of cutting, dwell time, die height could be adjusted manually comply with pratical demand;   5.Intelligent functions: intellegent counter, force measurement monitor, intelligent temperature controler(Customized available).   6.Range of output force: 15ft-100ft.(Optionally).
Scope of Applicatioins:

1. The machine is widely used in laborotary for searching .
2. With multi-purpose of press, the series hydraulic press could be comprehensively used in a variety of materials, punching, stamping, shaping, riveting, bending,shear, tension, various small parts of the press-fit assembly.     Technical Parameter: (Technical parameter can be customized according to your special need ):

Model			XTM107S-10	XTM107S-20	XTM107S-30	XTM107S-50
Nominal Force			10T	20T	30T	50T
MAx. Hydraulic Working Pressure			12.5MPa	11.1MPa	15Mpa	16MPa
Knock-out Force			1.9T	2.5T	3.7T	5T
Worktable Height			750mm	750mm	750mm	750mm
Max. Operational Height			400mm	500mm	500mm	500mm
Max. Stroke			300mm	300mm	300mm	300mm
Dimensions of the Table	L-R		500mm	600mm	600mm	600mm
	F-B		400mm	400mm	400mm	400mm
Speed of Slide	Descending Speed		≥ 150mm/s	≥140mm/s	≥180mm/s	≥180mm/s
	Pressing Speed		≥25mm/s	≥12mm/s	≥14mm/s	≥9mm/s
	Returning Speed		≥132mm/s	≥100mm/s	≥120mm/s	≥96mm/s
Overall Size of the Machine			650×720×1850(mm)	650×720×1900(mm)	650×720×1900(mm)	650×720×1900(mm)
Power of Motor			2.2KW	3.7KW	3.7KW	5.5KW
