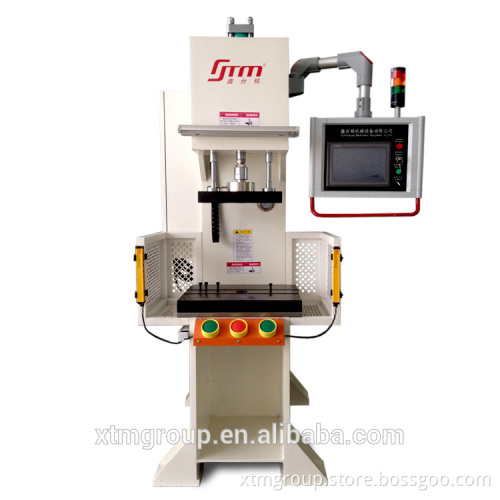

CNC servo hydraulic press CNC bow hydraulic press

XTM107S numerical control hydraulic pressure machine
Product name:
Bow type hydraulic press, C type hydraulic press, single column hydraulic press, electric motor, bearing, motor press mounting machine, hydraulic machine, hydraulic machine;
Scope of application:
The series hydraulic machine is widely used in a variety of materials, punching, stamping, plastic, riveting, bending, shear, tensile, a variety of small parts of the press fit, assembly, is a multi-purpose machine, using advanced composite cylinder hydraulic circuit, whether it is noise, speed, power consumption rate;
Product features:
1. The series hydraulic press to 2-20MPA liquid pressure as the power source, external three-phase AC380V 50Hz or AC220 60Hz three-phase AC power supply;
2. The series hydraulic equipment in liquid as the medium to transmit energy, using advanced composite cylinder hydraulic circuit, low oil temperature, air travel speeds are in 150MM/ seconds or more, industry and trade into the speed 30MM/ seconds;
3 solid open structure, which can make the body maintain enough rigidity, and has the most convenient operating space;
4 pressure, travel, time, close the height of the customer can adjust their own, easy to operate;
5 with automatic counting function, but also with force measuring display, intelligent temperature controller, customized according to customer requirements;
6 this series of hydraulic machinery output range has 15tf-100tf all kinds of specifications for selection (1tf=1000kgf=9.8KN)
