Floor hydraulic press Numerical control hydraulic press

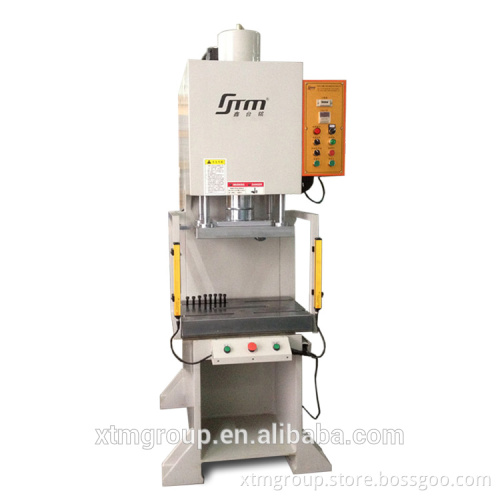

Floor hydraulic press
Scope of application: (C - type hydraulic press, hydraulic press, hydraulic press, motor press, bearing press, hydraulic press, riveting equipment, hydraulic plastic)
The series hydraulic machine is widely applicable to various materials of punching, stamping, plastic, riveting. Bending, shear, tensile, a variety of small parts of the press fit, assembly. A versatile punch. Is TM103C series of product upgrades, the advanced composite cylinder hydraulic circuit. Both the noise, speed, power consumption, is better than that of ordinary hydraulic press is a high efficiency, high speed, high output power, high environmental protection, a new generation of hydraulic press.
Product features:
The 1 series of hydraulic press based on 2-20MPA fluid pressure as the power source, external three-phase AC380V50HZ or AC22060HZ three-phase AC power.
2. The series equipment in liquid as the medium to transmit energy, using advanced composite cylinder hydraulic circuit, low oil temperature, air travel speeds are in 150MM/ seconds or more, industry and trade into the speed 30MM/ seconds below
3 equipment standby, slide up and down when the noise is not more than 75 dB.
4 solid open structure, which can make the body maintain enough steel, and has the most convenient operating space,
5. Break up and semi-automatic two control modes, manual can be pressing die stopped at arbitrary distance range, equipped with emergency recovery button, the installation of infrared hand device.
The 6 series of press pressing stroke by the timer, the pressure switch, position sensor, or the customers own mold control
7 the pressure of the main shaft of the pick-up height can be adjusted by the timer, or the location of the sensor can be adjusted within the range.
9 pressure, travel, time, close the height of the customer can adjust their own, easy to operate;
10 hydraulic system of built-in rack, the appearance of clean, lightweight, stable.
11 with automatic counting function, but also with force measuring display, intelligent temperature controller, customized according to customer requirements,
12 this series of hydraulic machinery output range has 15tf-100tf all kinds of specifications for selection. (1tf=1000kgf=9.8K)
