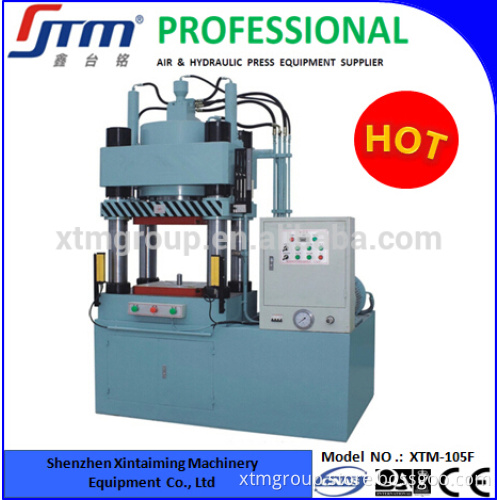

High Quality New Condition And Hydraulic Power Source Hydraulic Press For Metal Stamping

Specifications metal stamping machine

1.High parallel precision,vertical accuracy

2.Non-load fast speed, slow pressing

3.self-lubricating

High Quality New Condition And Hydraulic Power Source Hydraulic Press For Metal Stamping

Product Description    Product Features                                                                                         XTM-YDK series hydraulic press machine is a new type hydraulic press machine for metal machinery manufacture, expecially suitable for metal stamping processing. The machine is characterized by sensitive action, safe and reliably operation.  Operated by double-button switch.

 Selector switch modes of operation: jog (setup) and run (cycle).

 Flexibly adjustable pressure and stroke.

 Machine dwell time and stroke could be set specially as per processing requirements.

 Idea of doubled SLC (Security Light Curtain) makes it safe of operation.

 Emergencey switches for safety stop;

 Protective fence and the safety interlock can be added to upgrade the secure.

 Oil seals  adopts  ring-oriented technology, good performance of oil anti-leakage.    Processing Samples

          Other Application
  1. YDK Series Hydraulic Press Machine is designed for pressed precise watchcase, watchband, dishware, spectacle frame, jewelry, medal, picture frame, circuit board and other products.    2. YDK Series Press Machine is applicable for other finished products, which are pressed through mould such as hard alloy product and grinding wheel products etc.       Technical parameter

Model		Unit	YDK-100	YDK-200	YDK-300	YDK-500	YDK-600
Cylinder nominal force		KN	1000	2000	3000	5000	6000
Max. hydraulic pressure		MPa	19	18	22	22	25
Max. stroke of ram		mm	200	200	200	200	200
shut height	Max.	mm	420	420	420	450	450
	Min.		220	220	220	250	250
dimension of table	L-R	mm	450	500	590	650	700
	F-B		500	550	650	700	750
Speed of slide	moving up	mm/s	150	150	150	150	150
	return		120	120	120	150	150
Overall size	L-R	mm	1470	1590	1715	1960	2030
	F-B		1150	1150	1210	1210	1400
	H		2210	2260	2350	2670	2780
Power of motor		KW	7.5	7.5	11	15	15
Approx. total weight		T	2.5	3.5	4	6	8.5



More Pictures




detailed pictures of hydraulic press YDK used in metal stamping

stroke limit switch of the hydraulic press:

hydraulic power unit of the hydraulic press:

working table with T slot of hydraulic press:
