High Precision Hydraulic Die Cutting Machine,Die Cutting Machine with Good Price

Specifications frame type structure ;

individual control station separate with machine body;

optimized hydraulic system;

double work station

High Precision Hydraulic Die Cutting Machine, Die Cutting Machine with Good Price
    Product Description
   Hot Sale High Precision Frame Type Hydraulic Die Cutting Machine,Die Cutting Machine Good Price

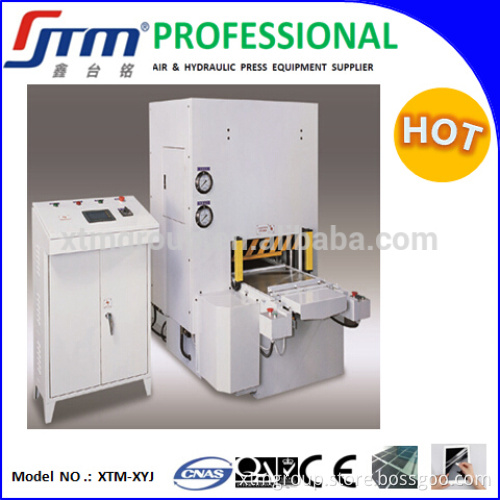

   Separated control station and machine body.

   Double working station,two-way alternate operation.

   Color screen tunch controllor.

   Operated by double-button switch.

   Enclosed cabinet structure with ideal of doubled .

   Security Light Curtain makes it safe of operation.

   Flexibly adjustable pressure dwell time and stroke.

   Emergencey switches for safety stop.

   All pipes, flange and joint with vibrations proof and leakage proof design and setting.


  Highlight of XJY Die Cutting Machine,Die Cutting Machine Good Price

    1.XYJ series adopts design of precise rigid support structure,with precise blanking depth position, cutting accuracy can reach 0.1mm;

    2.Advanced closed-loop regulation and proportional pressure and flow control--quick and precise positioning control system, stable, low noise level and low energy consumption;

    3. Alternate operation of two working station, high efficency.


Technical Parameter
 Hot Sale High Precision Frame Type Hydraulic Die Cutting Machine, Die Cutting Machine Good Price

Model		Unit	XYJ-30T	XJY-75T
Main cylinder nominal force		KN	300	750
Max. hydraulic pressure		MPa	20	20
Main cylinder return force		KN	100	100
Max. stroke of ram		mm	150	175
Regulating capacity of the stroke limiter		mm	25	25
Daylight opening	Max.	mm	150	175
	Min.		0	0
dimension of table	L-R	mm	500	600
	F-B		500	600
Speed of slide	fast closing	mm/s	75-80	75-80
	slow press		8-15	8-15
	return		70-75	70-75
Power of motor		KW	5.5	5.5

  Scope of Application
   Hot Sale High Precision Frame Type Hydraulic Die Cutting Machine,Die Cutting Machine Good Price       XJY Die Cutting Machine,Die Cutting Machine Good Price  is designed for precision blanking such as automotive, electronics, especially suitable for precise-blanking of thin film materials, such as: touch-screen mask, decals, nameplates.
