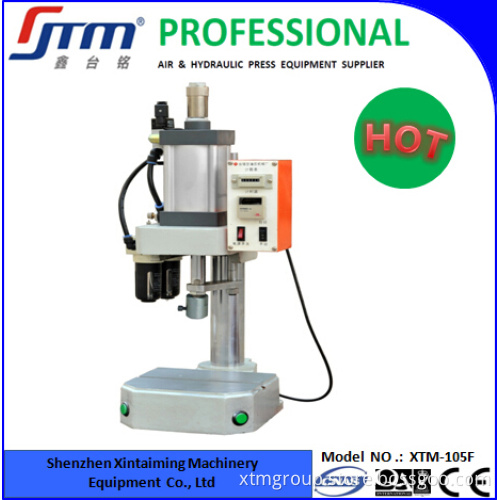

Pneumatic Press Riveting Machine

Specifications Pneumatic Press Riveting Machine

1.Assembling

2.riveting

3.punching

4.cutting.

Pneumatic Press Riveting Machine   Product features:
1.Hydraulic pressure actuation, easy to operate;    2.Less noise, lower consumption of electrcity and low cost of production;    3.Adjustable cylinder stroke & customized cylinder stroke as per clients'request;   4.Easily adjustable output, can reach expected output only by adjusting the pneumatic pressure;                                                                                             5.Special design concept aims at operation security, more convenient, stable and duralbe;       5.Special design concept aims at operation security, more convenient, stable and duralbe;                                            6.A thermal mold, temperature controler or a load cell could be fed into the machine as per customer request to meet particular processing requirements;    7.Effective working platform at customers'options or as per customers'request.    Scope of applications:   1.Riveting(Clothing, Jeans and other similar Riveting:    2.Punching & Forming (Silica Gel Segment)                3.Some other similar small processing of products.     Technical Parameter:

Items	XTM-pro 101-	XTM-pro 101-	XTM-pro 101-	XTM-pro 101-	XTM-pro 101-	XTM-pro 101-
Output/KG	100	300	500	800	1200	2200
Stroke/mm	100	100	100	100	100	100
Cylinder Dia./mm	ø63	ø80	ø100	ø125	ø160	ø200
Stroke Adjustment/mm	50	50	50	50	50	50
Biggest operational height/mm	300	300	300	270	270	270
Weight/kg	27	43	47	90	103	165

  More referential images:
