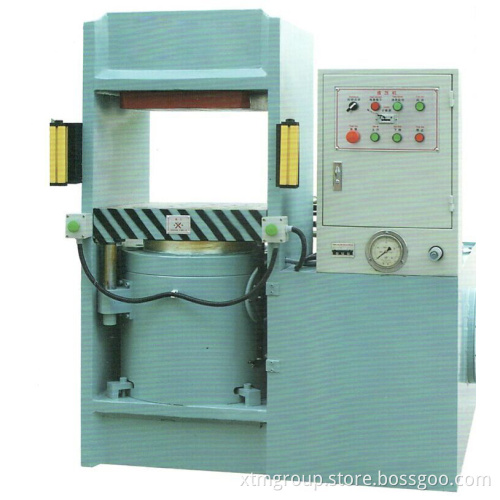

Metal punching shaping press machine matel stamping press machine

The press shaping; punching burr of the series hydraulic machine is all kinds of aluminum, magnesium alloy die casting products, plastic products, whole cutting of various kinds of metal products, motor silicon steel sheet second compressing and shaping, plastic product whole cutting; also suitable for plastic materials, sheet metal forming, such as sheet metal blanking, drawing, stamping and plastic and powder products and other uses for plastic materials, sheet metal forming, such as sheet metal blanking, drawing, the use of advanced composite cylinder hydraulic circuit. Both noise, speed and power consumption are better than ordinary hydraulic press is a high efficiency, high speed, high output power, high environmental protection of a new generation of hydraulic press machine in the die casting industry application is most widely.
Characteristics of aluminum and magnesium products trimming machine:
1 this series of hydraulic machine tool with 2-20MPA liquid pressure as the power source, external connection of three-phase 50HZ AC380V or three-phase
60HZ AC220 AC power supply.
2. The series equipment in liquid as the medium to transmit energy, using advanced composite cylinder hydraulic circuit, low oil temperature, air travel speeds are in 150MM/ seconds or more, industry and trade into the speed of 30 mm / sec following
3 hydraulic cutting edge machine equipment standby, sliding up and down when the noise is much smaller than similar products.
4. Adopts four-column.three-plate structure, the movable plate vertical accuracy by four precise guide set of control, an arbitrary point of the work surface and the working surface of parallel precision achieves 0.1mm below.
5 punch with waste blowing assembly. And at the next table is opened in the center of the waste chute.
6 punching machine punching dead point position is generally through the pressure switch, position sensor control.
7. Trimming machine with automatic counting function, manual and semi-automatic two control mode, manual can be pressing die stopped at arbitrary distance range, equipped with emergency recovery button, equipped with infrared hand device
8 the pressure, stroke, speed, dwell time and shut height can be adjusted according to request, convenient operation;
9 hydraulic system built in the bottom of the tank, the appearance of clean, stable.
10. The series of hydraulic machinery output range of 5-100 TF optional. (1tF = 1000kgf = 9.8kn) Shenzhen Xin Tai Ming Machinery Co., Ltd. is a set design, manufacturing, sales in one of the hydraulic machine manufacturers, the main products are hydraulic machine, CNC hydraulic machine, four column hydraulic machine, number control pressing machine, hydraulic machine, CNC hydraulic machine, servo press mounting machine, hydraulic machine in Shenzhen, four column hydraulic machine, IMD equipment, Shenzhen hydraulic machines and other, the first brand of hydraulic machine [Xin Tai Ming], state-level high-tech enterprises, 15 years integration of Shenzhen hydraulic machine technology experience. Http://www.szxtaiming.com/
