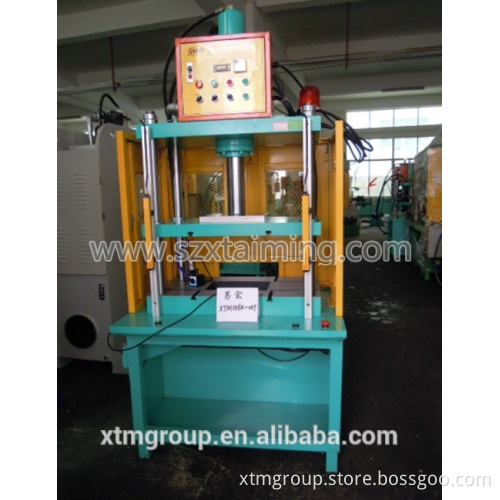

XTM106 series die casting machine
Scope of application: (die-casting product cutting edge machine, four column hydraulic machine, Shenzhen hydraulic machine, hardware punching machine, precision hydraulic cutting machine, precision hydraulic punching machine, aluminum and magnesium products cutting edge machine, auto parts pressure installed)
The series hydraulic machine is widely used in all kinds of aluminum, magnesium alloy die casting products, flash die cutting and shaping, whole cutting of plastic products; can also be used in the plastic forming materials such as sheet metal blanking, drawing and so on, the machine in the application of die casting industry is most widely, is designed for die casting industry designed.
Product features:
1 this series of hydraulic machine tool with 1-14MPA liquid pressure as the power source, external connection of three-phase 50HZ AC380V or three-phase
60HZ AC220 AC power supply. The total power consumption is not more than 3.7KW.
2 the series of equipment to liquid as the medium to transfer energy, high efficiency, fast speed, low noise,
3 equipment standby noise is not more than 80 dB.
4. Adopts four-column.three-plate structure, the movable plate vertical accuracy by four precise guide set of control, an arbitrary point of the work surface and the working surface of parallel precision achieves 0.1mm below.
5 punch with waste blowing assembly. And at the next table is opened in the center of the waste chute.
6 punching machine punching dead point position is generally through the pressure switch, position sensor control.
7 such as customer needs can also be designed to slow the speed of the two paragraph (usually close to the product when the reduction of pressure)
. has the function of automatic counting, manual and semi-automatic two control mode, manual can be pressing die stopped at arbitrary distance range, equipped with emergency recovery button, equipped with infrared hand device
9 the pressure, stroke, speed, dwell time and shut height can be adjusted according to request, convenient operation;
10 hydraulic system built at the bottom of the tank, neat appearance, stable. With casters and foot cup table below, can be easily moved.
11 this series of hydraulic machinery output range has 5tf. 10tf. 10tf 15tf. 3tf. optional. (1tf=1000kgf=9.8KN)
