Spinning Head Hydraulic Riveting Machine, Brake Shoe Hydraulic Riveting Machine

Spinning Head Hydraulic Riveting Machine, Brake Shoe Hydraulic Riveting Machine
Product Description

Hydraulic Spin Riveting Machine Type Brake Shoe Riveting Machine is a new type excellent hydraulic riveting machine, portable, easy, safe and convenience to operate. C type structure adjustable stroke of principal axis  adjustable height of worktable adjustable riveting time (control by timer range from 0-6 second) adjustable riveting pressure by pressure regulating valve safe operation by foot switch easy, convenience to adjustment and operation    Coutomization supported: height and size of worktable Technical source: Taiwan  Certification:  ISO

Detailed pictures of Brake Shoe Riveting Machine

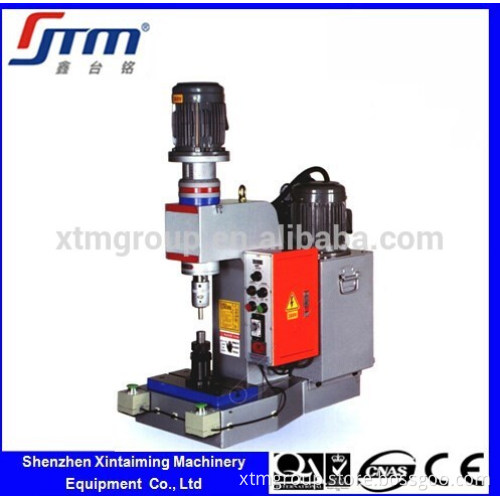

                                                              rake Shoe Riveting Machine overall view

                                 Brake Shoe Riveting Machine parts detail

                                   Brake Shoe Riveting Machine parts detail

                                    Brake Shoe Riveting Machine  parts detail

Highlight of Brake Shoe Riveting Machine     Compare to riveting machine in pneumatic driven, hydraulic riveting press performs   More stable and reliable   With wider applicability    More competitive price.

    Technical Parameter

Rivet press : hydraulic power source.  RIveting head rotate speed: 1400 revolutions per minute.  Riveting time adjustment: 0-6 second.  Riveting capacity:                     Solid rivet: 3-14mm.                     Hollow rivet: 4-30mm.  Operate pressure: 2-7Mpa (adjustable) Rivet length: 180mm.  Principal axis: 42mm.  Weight: 320Kg.  Overall dimension:  770*470*16300mm

Scope of Application
Hydraulic Brake Shoe Riveting Machine  press can be widely uesd in: 1. The instrument appearance;
2. Daily hardware;
3. Electrical equipment;
4. Medical equipment;
5. Automobile parts.
Shenzhen Xintaiming Machinery Equipment Co., Ltd


Shenzhen Xintaiming Machinery Equipment Co.,Ltd, the leading company of air and hydraulic machine in China. We have coustomers distribute in Germany, Hungary, Russia, India, Indonesia, Thailand, Vietnam, USA, Mexico, Brazil, Italy, Saudi Arabia, Bahrain, South Africa, Australia, Iran and so on more than 20 countries.


X.T.M Advantage

Key aspects of the X.T.M success are:  Continuous investment in research & development (more than 7% of profits).  First class quality of raw materials. Specialized workforce. Wide market service network throughout the country.



Workforce & Facility
7500sq meter manufacturing facility, moe than 150 full time employees, X.T.M is fully capable of
handling the growing demand worldwide, and offering excellent technology, solid qualit at highly competitive prices.


Quality Assurance

Exibition & Visit


Cooperative Partners

Strong research and development ability, powerful marketing ability, commitment, expertise and dedication. When it comes to hydraulic / pneumatic based press machines, Please feel no hesitate to contact with X.T.M.
