Hydraulic Power Source and Spin Riveting type Hydraulic Spin Riveting Machine

Specifications hydraulic riveting machine

solid & hollow rivets riveting

C type, large operating space

easy to calibrate the workpiece

Hydraulic Power Source and Spin Riveting type Hydraulic Spin Riveting Machine Product Description

Hydraulic power source and spin riveting type hydraulic spin riveting machine is a new type excellent hydraulic riveting machine, portable, easy, safe and convenience to operate. C type structure adjustable stroke of principal axis  adjustable height of worktable adjustable riveting time (control by timer range from 0-6 second) adjustable riveting pressure by pressure regulating valve safe operation by foot switch easy, convenience to adjustment and operation    Coutomization supported: height and size of worktable, and something like these Technical source: Taiwan  Certification:  ISO

Detailed pictures of hydraulic spin riveting machine

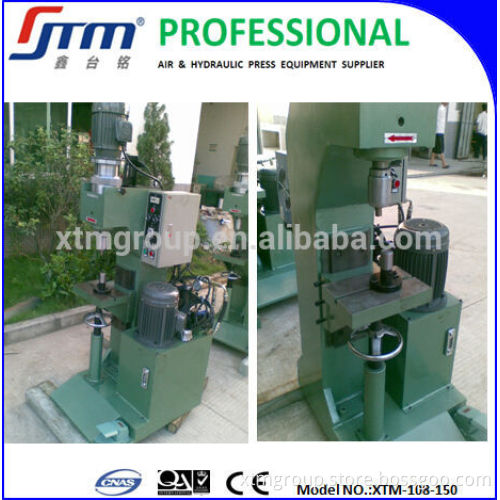

                                                                     hydraulic spin riveting machine overall view

                                     hydraulic spin riveting machine parts detail

                                   hydraulic spin riveting machine parts detail

                                        hydraulic riveting machine parts detail

Highlight of Hydraulic Spin Riveting Machine     Compare to riveting machine in pneumatic model, hydraulic riveting machine performs   more stable and reliable   with wider applicability    more competitive price.

    Technical Parameter

rivet machine : hydraulic.  reveting head rotate speed: 1400 revolutions per minute.  time adjustment: 0-6 second.  riveting capacity:                     solid rivet: 3-14mm.                     hollow rivet: 4-30mm.  operate pressure: 2-7Mpa (adjustable) rivet length: 180mm.  principal axis: 42mm.  weight: 320Kg.  overall dimension:  770*470*16300mm

Scope of Application
Hydraulic hydraulic spin riveting machine can be widely uesd in: 1. The instrument appearance,
2. daily hardware,
3. electrical equipment ,
4. medical equipment
5. automobile parts

Shenzhen Xintaiming Machinery Equipment Co., Ltd


  Shenzhen Xintaiming Machinery Equipment Co.,Ltd ,the leading company of air and hydraulic machine in China.    We have coustomers distribute in Germany, Hungary, Russia, India, Indonesia, Thailand, Vietnam, USA, Mexico, Brazil, Italy, Saudi Arabia, Bahrain, South Africa, Australia, Iran and so on more than 20 countries.


X.T.M Advantage

Key aspects of the X.T.M success are:  Continuous investment in research & development (more than 7% of profits).  First class quality of raw materials. Specialized workforce. Wide market service network throughout the country.



Workforce & Facility



7500sq meter manufacturing facility, moe than 150 full time employees, X.T.M is fully capable of
handling the growing demand worldwide, and offering excellent technology, solid qualit at highly competitive prices.


Quality Assurance

Exibition & Visit


Cooperative Partners

Strong research and development ability, powerful marketing ability ,commitment, expertise and dedication. When it comes to hydraulic / pneumatic based press machines, Please feel no hesitation to contract with X.T.M.
