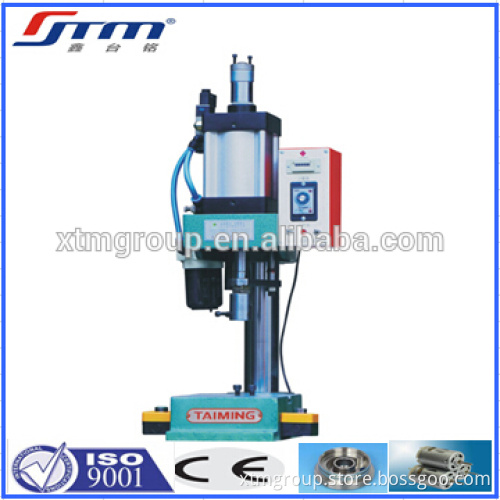

XTM-pro 101 Pneumatic Riveting Machine

Specifications Pneumatic Riveting Machine

Parts assembling

micro motor axis press-in

reveting, punching, cutting.

Pneumatic Riveting Machine Features:   Scope of Application: Comprehensively used in punch riveting in the line of Apparel, Jeans, Overcoat, or other similar processing work.   Machinery features: 1.Motivated by compressed air, no noise, no pollution, and environmental friendly.   2.Mini –type save installation space, and fit for the process of small work piece, such as assembling, shaping, hot pressing and riveting.   3.Simple structure, strong performance, less maintenance. The working height of the machine can be adjusted according to the products or moulds.   4.Travel position and the lowering speed of cylinder can be easily adjusted(high speed drain tap should be installed when it works in high speed).   5.The design of start mode adopts double-button switch (foot pedal switch).   6.The cylinder is equipped with stopping guide pole to get to a higher precision.   7.In addition, hot mould and temperature control box (used to hot press and iron) can be installed.   8.The output power of this machine ranges from 100~2200kg.   9.The dimension of the working platen are: width 700×depth 600 ×height 780 (mm),   10.We can manufacture according to customer’s special order. Parts assembling, micro motor axis press-in and other workings like reveting, punching and cutting.   Technical Parameters:

Model No.	Output/KG	Stroke/MM	Cylinder Dia./MM	Stroke Adjustment/MM	Max.Daylight/MM	Weight/KG
XTM-pro 101-100	100	100	ø63	50	300	27
XTM-pro 101-300	300	100	ø80	50	300	43
XTM-pro 101-500	500	100	ø100	50	300	47
XTM-pro 101-800	800	100	ø125	50	270	90
XTM-pro 101-1200	1200	100	ø160	50	270	103
XTM-pro 101-2200	2200	100	ø200	50	270	165
