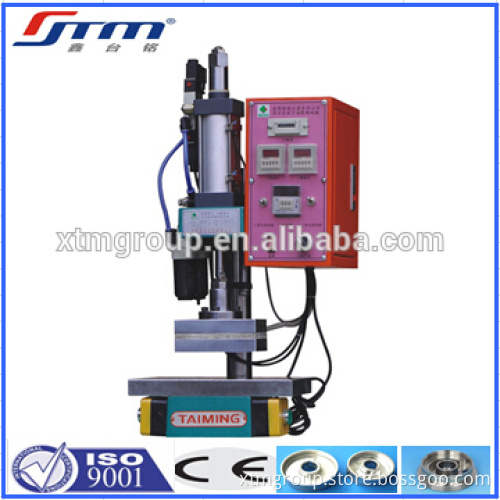

Riveting Machine

Specifications Riveting Machine

1.Portable

2.Easy to operate

3.Economic

4.Efficient

Reviting Machine   Features: 1.Compressed air actuation, easy to operate;         2.Less noise, lower consumption of electrcity and low cost of production;    3.Adjustable cylinder stroke & customized cylinder stroke as per clients'request;         4.Easily adjustable output, can reach expected output only by adjusting the pneumatic pressure;   5.Special design concept aims at operation security, more convenient, stable and duralbe;       6.A thermal mold, temperature controler or a load cell could be fed into the machine as per customer request to meet particular processing requirements;   7.Effective working platform at customers'options or as per customers'request.   Technical Specifications:

Model	Out put/KG	Travel Stroke/mm	Cylinder Dia./mm	Stroke adjustment/mm	Max.Working Height/mm	Weight/KG
XTM-pro 101	100	100	ø63	50	300	27
XTM-pro 101	300	100	ø80	50	300	43
XTM-pro 101	500	100	ø100	50	300	47
XTM-pro 101	600	100	ø125	50	270	90
XTM-pro 101	1200	100	ø160	50	270	103
XTM-pro 101	2200	100	ø200	50	270	165

  Scope of applications:   Assembling, Micro Motor Axis Press, riveting, punching and cutting and other similar processing works.      More related pictures:
