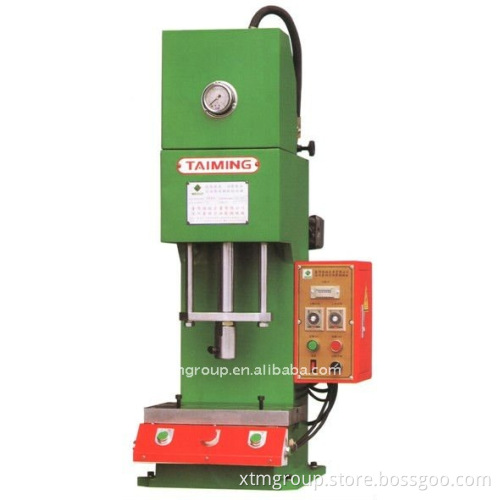

XTM-Pro 103C Riveting Machine

Specifications Riveting Machine

1.Double-button switch

2.Adjustable pressure and stroke

3.Working reliably

 XTM-Pro 103C Riveting Machine feature: 1.Adopts operation mode of double-button switch;   2.Adjustable pressure and stroke;  3.Control modes of inching and semi-automatic;    4.Optional timer control or program control according to additional funtion request based on processing precision;   5.Easy, simple to understand and  operate as it works stably;    6.Core Hydraulic System, low noise, lower consumption of electricity.   Following is the example :                                  Scope of Application:Fittings' assembling, components' correction, Riveting, light Shearing,

model	theoretic output(ton)	operating surface size(mm)	max.operating height (mm)	cylinder stroke (mm)	axle hole size(mm)	power supply	motor power(KW)
XTM-103C-3T	1-3	350*240	245	150	Ø25	3Ø380VAC,50/60Hz	2.25
XTM-103C-5T	1.5-5	350*240	245	150	Ø25	3Ø380VAC,50/60Hz	2.25
XTM-103C-10T	3-10	400*300	300	200	Ø30	3Ø380VAC,50/60Hz	3.75
