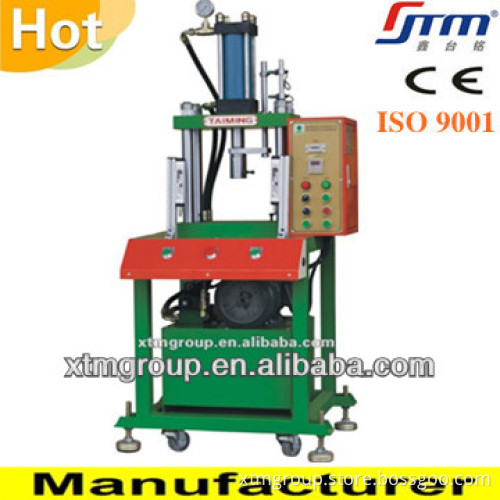

High quality XTM-103 four-column hydraulic riveting machine with CE/ISO

Specifications High quality XTM-103 four-column hydraulic riveting machine with CE/ISO

1.Adopts operation mode of double-button switch

High quality XTM-103 four-column hydraulic riveting machine with CE/ISO
  Guten Tag,ich kann mit Ihnen Deutsch sprechen,es freut mich,ihnen zu  sprechen!      Company   Brief  Introduction     Shenzhen Xintaiming Machinery Equipment Co., Ltd. is professional researching and developing manufacturer which is specialized in the designing and making    Hydraulic cutting /punching/molding/bending/hot press machine   High speed punching machine   CNC C-type hydraulic machine              CNC Servo press series   IMD/IML hot press molding machine    IMD/IML 3D punching machine  and so on   Our products have been exported to Germany, Hungary, Russia, India, Indonesia, Thailand, Vietnam, the United States, Mexico, Brazil Italy, Saudi Arabia, Bahrain, South Africa, Australia, Iran and so on more than 20 countries   Feature:   1.Adopts operation mode of double-button switch;                                                   2.Flexibly adjustable pressure and stroke  3.Control modes of manual and semi-automation;                                              4.Machine dwell time and stroke could be set specially as per processing requirements;  5.Easy operation system, easy to understand and control.     The scope of application:   Press fitting of parts and components, calibration and riveting of parts, formming of plastic materials, like blanking, strentching and embossing of plate, as well as pressing of plastic and powder product.             Related technical parameters:

model	theoretic output pressure(ton)	operating surface size(mm)	cylinder stroke(mm)	axle hole size(mm)	power supply	max.operating height(mm)	motor power(kw)
XTM-103-3T	1-3	400*300	200	Ø25	3Ø380VAC,50/60Hz	300	2.25
XTM-103-5T	1.5-5	400*300	200	Ø25	3Ø380VAC,50/60Hz	300	2.25
XTM-103-10T	3-10	500*400	200	Ø30	3Ø380VAC,50/60Hz	300	3.75
XTM-103-15T	5-15	500*400	200	Ø30	3Ø380VAC,50/60Hz	300	3.75

 More product pictures:           Factory overview             Workshop           Trade Fair pictures:           Client visitation     Certification
