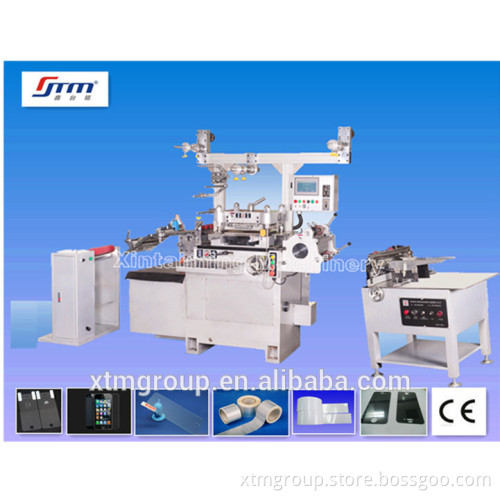

High Grade Automatic Die Cutting Machine for Screen Protector by CE

Specifications Automatic Die Cutting Machine

1.Technology: Japan and Taiwan

2.High precision with +-0.05mm

3. Advanced automatic control

  High Grade Automatic Die Cutting Machine for Screen Protector by CE   Product Description     1. High preciusion: With CNC servo film-pulling system,  the die-cutting precision is up to ±0.05mm;   2. Simple and easy to operate: One stop operation of film feeding, lamilating, die cutting ,waste discharge and sheet cutting or rewinding;
3. High quality configuration: Built-in centralized automatic oil supply system, which guarantees machines run at high speed without wear-down;        Our 105FAC die cutting mahcine is  multipurpose, it is widely used in cutting screen guard film, self-adhesive materials ,thin polyester fiber film trademark, PET ,PVC,PP,PE, insulating materials, viscose, shielding materials,3MSONYNITTOTESTPORON and other specially adhesive tape, reflective film, astigmatism film, anti-static protection film, opaque aluminum foil, prism film, holographic film and so on.

Specification	XTM-105FAC-1 seat	XTM-105FAC -2seat	XTM-105FAC -1 seat	XTM-105FAC -2seat
Max. Film Width(mm)	320	320	360	360
Max. Die Cutting Size(mm*mm)	300*300	300*300	340*340	340*340
Maximal Die Cutting Speed (R.P.M.)	30~200	30~200	30~200	30~200
Precision (MM)	±0.05	±0.05	±0.05	±0.05
Main Driver Motor  power (KW)	2.2	3.7	3.7	3.7
Rated Voltage(V)	220	220	220	220
Size of the Machine(mm)	1830*1360*1800	2800*1360*1800	1850*1380*1800	2840*1380*1800
Installation Area(mm)	5000*3000	6000*3000	5000*3000	6000*3000
Wood case Packing volume(CBM)	6	9	6	9
Net Weight(KG)	1500	2500	1800	3600
