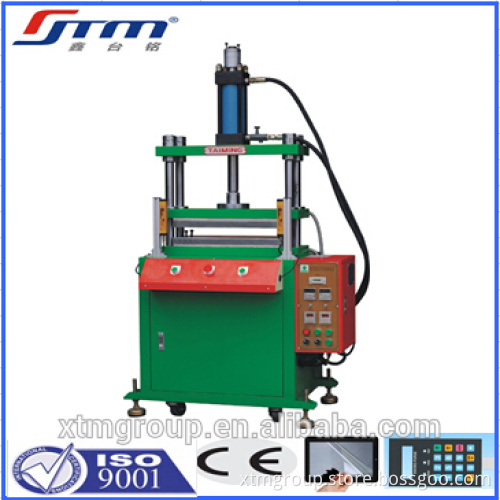

Factory Price Portable Hot Press Machine for Cutting Screen Guard by CE

Specifications Hot Press Machine

1.High efficiency;

2.Less error;

3.Safety ensured;

4.Long-run service with big benefit.

  Low Price Hydraulic Hot Press Machine for Cutting Screen Guard by CE    Product Description

Machine Features

  1. Using four-column and three plate frame brings the highly vertical accuracy of parallelism between the active platen and the work platform, and leads to the precision of the downward pressing;    2.Adjustable cylinder stroke, BDC ( bottom dead center), makes the repeat precision of up to 0.01mm;     3.An ideal design of gathering the hydraulic components inside the centre of the overall frame,  which makes XTM-pro 105F more stable and decent;    4.A imported intelligent temperature controller and separately controlled thermal platens could be fed into the up and down mold platens, only allows difference of temperature in more or less 1 degree, so as not to burn down;   5.A electronic ruler and security curtain light and displayer could also be installed so as to reach more functions that safety  processing purpose;   6.See the four Goblet shaped Press Feet and idler wheels.

Application Scopes

1.Die cutting of the silica gel and plastic buttons of various handsets or remote control, whole of partial cutting of plastic product and mica plate.   2.Cutting of protector of LCD screen of various handset, digital cameras and notebook computers, precise cutting and half cutting-of various adhesive tapes and trademarks. 3.Various types of PV, PE, the PC membrane switch, membrane panel embossed drum package, molding, etc. 4.Pressing and forming of flexible circuits and lines of keyboards of various notebook computer.

Technical Parameter

 (Technical parameter can be customized according to your special need ):

Items	XTM-105H-3T	XTM-105H-5T	XTM-105H-10T	XTM-105H- 15T
Max. Daylight/mm	170	170	170	170
High Speed Stroke/mm	100-200	100-200	100-200	100-200
Turbocharged stroke/mm	5-20	5-20	5-20	5-20
Table Sizse/mm	400*300	400*300	500*400	500*400
Power/KW	2.2	2.2	3.7	3.7
Operating Pressure/MPa	8	13	17	15.6



Product Pictures

Accessories



      Company Information Shenzhen Xintaiming Machinery Equipment Co., Ltd. is professional researching and developing manufacturer which is specialized in the designing and making CNC Servo press series, CNC C-type hydraulic machine, IMD/IML 3D punching machine, IMD/IML hot press molding machine, Hydraulic cutting /punching/molding/bending/hot press machine, XTM series four-column single-acting upper displacement oil press and so on.   Our products have been exported to Germany, Hungary, Russia, India, Indonesia, Thailand, Vietnam, the United States, Mexico, Brazil Italy, Saudi Arabia, Bahrain, South Africa, Australia, Iran and so on more than 30 countries  and regions.
