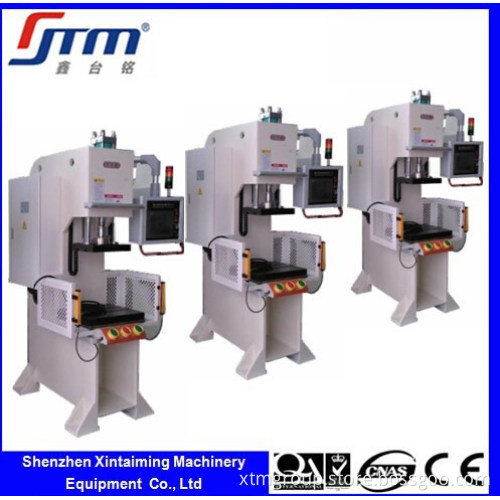

C Frame CNC Hydraulic Bearing Press For Pressing Ball Bearings

Specifications Hydraulic Bearing Press

1.C Frame With CNC

2.For Pressing Ball Bearings

3.Customized Available

4.20 Years Factory

C Frame CNC Hydraulic Bearing Press For Pressing Ball Bearings

Product features

     1.Drived by hydraulic pressure generated by motor, adopts advanced dual oil cylinder and hydraulic circuit, causes low heat while operates at a speed of more than 150mm per second;            2.Hydraulic pressure actuation of 1-14MPA, three-phase alternating-current supply, AC380V 50HZ
or AC220 60 HZ, total consumptions of electricity of less than 3.7KW.     3.The frame adopts integrity welding technology with better regidity and stability of machine while
wide convenient operation space;         4.Pressing force, stroke of cutting, dwell time, die height could be adjusted manually comply with
pratical demand;           5.Intelligent functions: intellegent counter, force measurement monitor, intelligent temperature controler(Customized available).       6.Range of output force: 15-100 ton.



   Bearing Hydraulic Press In Workshop

                                                  Some of the functions of Bearing Press CNC controller:

Technical parameter



Model		Unit	107S-10T	107S-20T	107S-30T	107S-50T
Main cylinder nominal force		KN	100	200	300	5000
Main cylinder stroke		mm	300	300	300	300
Max. daylight opening		mm	400	500	500	500
Max. hydraulic working pressure		MPa	12.5	11.1	15	16
Main cylinder return force		KN	19	25	37	500
Heifht of table above the floor		mm	750	750	750	750
Dimension of table	L-R	mm	500	600	600	600
	F-B		400	400	400	400
Speed of slide	rapid close	mm/s	150	140	180	180
	slow press		25	12	14	9
	return		132	100	120	96
Overall dimension	L-R	mm	650	650	650	650
	F-B		720	720	720	720
	H		1850	1900	1900	1900
Motor power		KW	2.2	3.7	3.7	5.5

 Note: special requirements of the hydraulic bearing press machine can be cutomizaiton.


Application scpe


     The XTM-107S series can be widely used in pressing in Ball Bearings, and    Punching,embossing, forming,shallow drawing, shaping, riveting, bending, shearing,
tension and assembling of metal or nonmetal.    Press fitting of motor rotors, stators, electronic connectors and electric parts.    Press fitting of various kinds of small parts,ect.



About Us


Shenzhen Xintaiming Machinery Equipment Co., Ltd is specialized in the designing and making
all kinds of hydraulic and pneumatic presses.    1) CNC Servo press series 2) CNC hydraulic machines  3) MD/IML 3D punching machine  4) IMD/IML hot press molding machine   5) High speed punching machine 6) Hydraulic stamping/embossing/cutting /drawing press machine    Our products have been exported to Germany, Hungary, Russia, India, Indonesia, Thailand, Vietnam,
the United States, Mexico, Brazil Italy, Saudi Arabia, Bahrain, South Africa, Australia, Iran and so on
more than 30 countries and regions.


Why Choose Us


        Key aspects of the X.T.M success are:  Continuous investment in research & development (more than 7% of profits).

 First class quality of raw materials .

Specialized workforce (more than 150 employees),

Wide market service network throughout the country


7500sq meter manufacturing facility, moe than 150 full time employees, X.T.M is fully capable of
handling the growing demand worldwid, and offering excellent technology, solid qualit at highly competitive prices.

Our Serive



1. We use the world-famous brand accessories like Mitsubishi, Schneider, Siemens, Yuken, Omron
etc. Before packing machine, we debug machine by letting the machine run for 12 hours.   2. Before packing machine, the machine will run one day for testing oil leakage, repeat error, and
electrical parts performane. Meanwhile, there will be video giving to you (FAT video).    3. Any error happens within the period of guarantee, we offer the according parts for free.    4. we will offer overseas service if we(the Two Parties) can come to an overseas service agreement.


Other Products

  (Please follow the following websites to watch our Involvement Videos about XTM Series Press Machine!)   http://www.tudou.com/programs/view/irSJOA0jcuw/  XTM-105H Series membrane cutting   http://www.tudou.com/programs/view/v_HWbn_AT8I/  XTM-106 Series Die casting parts TRIMMING MACHINE   http://www.tudou.com/programs/view/uutePmlLzpU/  XTM-109 Series IMD Machine   http://www.tudou.com/programs/view/_dYscK9jDe0/  XTM-106K Series Wood Die Cutting Machine



FAQ

  Q1: Are you a factory or trading company? A: We are a factory.   Q2: Where is your factory located? How can I visit there? A: Our factory is located in E Gong Ling West RD. 6-12, Liu Lian Community, Pingdi Town, Longgang District, Shenzhen China. You can fly to Shenzhen Airport and then take the metro or city bus to our factory. Warmly welcome to visit us!   Q3:How does your factory do about quality control? A: We have been CE/ISO certificated and have a complete quality controlling system. We test all the accesories to ensure the quality, and adopt the advanced assembly technology during production and debug before shipping.   Q4: What's the payment terms? A:T/T, 40% deposits; 60% balance before deliverying is available

 Strong research and development ability, powerful marketing ability, commitment, expertise
and dedication. When it comes to hydraulic / pneumatic based press machines, Please feel
no hesitate to contact with X.T.M.
