High Fitting Precision PCB Connector Servo Press Machine For Precision Pressing

Specifications High precision

Precise position, pressure and displacement control

Suitable for press-fitting

Low noise, low vibration

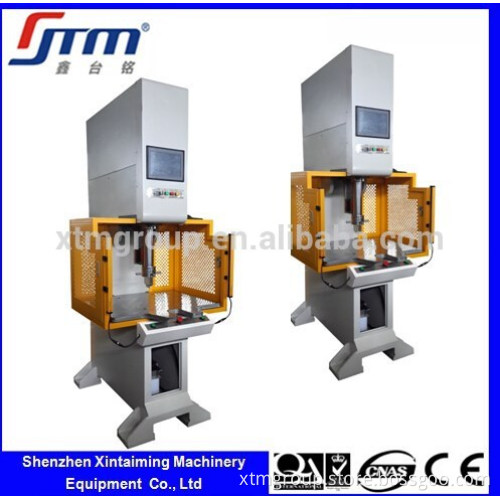

High Fitting Precision PCB Connector Servo Press Machine For Precision Pressing      Product Description High Fitting Precision PCB Connector Servo Press Machine is a new type servo press for PCB precision assembly. As a professional hydraulic and servo press machine manufacturer with more than 10-year experience from shenzhen, we supply high quality servo press all over the world.


1.  Servo motor driven high-precision ball screw for precision assembly work.       2.   Precise closed-loop control of pressure and displacement .      3.   Entire process graphs of Press-fit force and displacement can be displayed on the LCD touch screen.       4.   Automatically determines the eligibility of product in any stage of the press process, 100% removes defective products in  real  time, enabling online quality control.       5.  All technical data (pressure,displacement,press speed ,dwell time) can be set via frendly man-machine interface, easy to operate.     6.  100 of different kinds of press-fit programe can be stored.     7.  Seven kinds of press-fit models to choose to meet the requirements of different processes.     8.  Simply callout the different mounting program to meet the process of different specification product, easily implement a multifunctional and flexible set of lines.




   Highlight of high precision PCB connector servo press machine          1.Compared to the traditional pneumatic press and hydraulic presses, more than 80% of energy-
saving, more environmentally friendly and safe, can meet the requirements of clean room equipment.

      2.Connected to your computer through the external ports, press-fit data can be stored on your computer, ensure that the processing data can be traced back, ease of production and quality management control.       Functions of human-computer interface of PCB connector servo press         The functions and working interfaces which can be fast switched of the color touch screen controller are as below:                                      parameter setting                                                                                     monitoring of I/O                                             current curve                                                                                 production report                                             data eport                                                                                      decive information     Technical Parameter
  High Fitting Precision PCB Connector Servo Press Machine , machine specifications customization supported.

precise PCB connector servo press		200kgf	500kgf	1000kgf	2000kgf	5000kgf	8000kgf
work temperature		0-40°C
Main cylinder stroke		AC220V single phase			AC380 three phase
servo press mode		constant press speed, precise position control
		constant press speed, precise pressure control
		constant press speed, precise displacement control
servo press program		100 kinds of press mode
human-computer interface		65536 Colors, 7Inch Touch Screen
control mode		100Mbps high speed communication module, PLC+exclusive control unit
drive mode		precise AC servo motor, 7 class well ground ball screw
I/O interface		USB2.0, down load & upload available
die connector dia.		∅ 8mm	∅ 16mm	∅ 16mm	∅ 20mm	∅ 25mm	∅ 30mm
pressure output	nominal force	200kgf	500kgf	1000kgf	2000kgf	5000kgf	8000kgf
	range of application	10%,100% of the entire stroke
	unit	0.1kgf
	pressure precision	1%F.S
	repeat duration	1‰ F.S
displacement/stroke	standard Stroke	50/100mm			150/200/250mm
	unit	0.001mm
	repeat duration	0.01mm
linear speed	fast forward	0.1- -160mm/s				0.1- -200mm/s
	detect	0.1- -20mm/s				0.1- -30mm/s
	press	0.1- -35mm/s				0.1- -50mm/s
	return	0.1- -160mm/s				0.1- -200mm/s
dwell time	Max.	99.9sec
	reccomended	<10sec
	factory reset	0.1sec

  Dimension   Dimension of precision PCB connector servo press XST desk-type                 Dimension of precision PCB connector servo presses XST floor-type                       Shenzhen Xintaiming Machinery Equipment Co., Ltd
