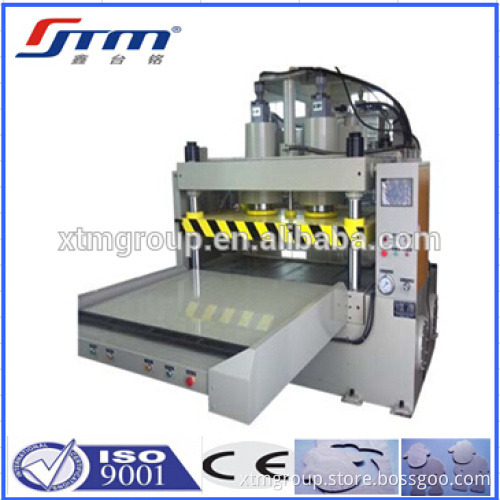

Plywood die cutting machine

Specifications Plywood die cutting machine

1.Stable operation

2.Micro motor axis press-in

3.Punching

Plywood die cutting machine   1.Precise four-column three-platen frame, the grad of parallelism between the Active platen and the work platform could reach up to more than 0.08mm under the control mode that the three platen are controled by the four precise guide sleeves;    2.Manual & Semi-automation operation system, front stretched out control platform, emergency buttons, security curtain light, considerate design for overall security;     3.Instrument of loading material and blow facility, special design concept for special processing work;     4.Pressing force, stroke of cutting, dwell time, die height could be adjusted manually comply with pratical demand;    5.Standard idler wheel and goblet shaped machine feet, convenient to move.     Scope of Application:   1 Comprehensively used in punch riveting in the line of Apparel, Jeans, Overcoat, or other similar processing work. 2.overall cutitng of plastic products, forming of plastic material, like blanking, stretching and embossing of plates, as well as pressing of plastic and powder products,  and other users, It is mostly used in auto and motorcycle fitting sectors.   Puching & Shaping & Cutting in 4mm, 5mm, 6mm thick basswood/birch wood/plywood die cuttig             Technical Parameters:

Model No.	Output/KG	Stroke/MM	Cylinder Dia./MM	Stroke Adjustment/MM	Max.Daylight/MM	Weight/KG
XTM-pro 101-100	100	100	ø63	50	300	27
XTM-pro 101-300	300	100	ø80	50	300	43
XTM-pro 101-500	500	100	ø100	50	300	47
XTM-pro 101-800	800	100	ø125	50	270	90
XTM-pro 101-1200	1200	100	ø160	50	270	103
XTM-pro 101-2200	2200	100	ø200	50	270	165
