GreenTouch 17" touch skin window touch glass hid touch foil skin multitouch

GreenTouch 17" touch skin window touch glass hid touch foil skin multitouch Product Description Professional Website: http://www.greentouch.com.cn or Click here. Tel/Wechat: +86 013827465009,TM : keetouch , Skype: greentouch5   Interactive Touch Foil products discrption :
         Interactive touch foil is transparent touchsensitive film, affixed to the membrane in the back of the glass or transparent acrylic plate, glass or acrylic panels can instantly transform size touch screen. Only a few microns thick our thin film display screens can turn any surface into a high definition multi media display surface. Rear projected images, video and dynamic media content can be displayed in any format, anywhere.  our touch foil can be pasted on a glass window or inside of a glass door and a simple back-projection or front-projection projector can turn the glass window or glass door into a large touch screen. This film enables projection of product information directly on the glass to attract interactivity with the potential customers. It is a perfect promotional display that not only provides interactive promotion and customer experience around the clock but also records the interactive data from potential customer   Interactive touch foil type :

Touch foil type for paste	Tail version	Touch controller	Available size	Touch points
Adhesive (permanent)	Side or Base	USB interface	15"-100"	2 points

Interactive touch foil Related series suggestion :   (real 10,20points touch with 4K sensors, size from 32"-100" )   (Real 20,40points touch with 8K sensors , size from 32"-100")
      Product Specificates Interactive touch foil more specification:

Induction method	The improved projected sensing technology, criss-cross X, Y nanowires constitute sensing matrix
Touch size	32"~100" can be customized
Touch accuracy	No drift, the deviation is about 1~3mm
Calibration way	software calibration
Induction thickness (penetration)	Adjusted by software to adapt to various thickness of glass, even wear gloves to produce touch-sensitive,   can penetrate nonmetallic materials about the thickness of 20 mm (middle to allow air layer), the induction   can even penetrate glass thickness aboutof 25mm
Scanning frequency	60Hz~130hz
Output way	USB 2.0 (HID public interface to USB Mini B interface)
Compatibility system	WIN7 / WIN8 / 8.1 / Linux operating system (Ubuntu 12.04.4> 3.11.0-15- General, Ubuntu 14.04.2> 3.16.0-30- generic) / Android 4.2 / 4.4 or above (kernel version> A20-> 3.3.0, RK3188-> 3.0.36, RK3288-> linux 3.10.0), etc.
Temperature range	-20°C~60°C
Humidity range	0% RH to 95% RH (without condensation neighborhood)
Transmittance	>93%
Power consumption	Max 0.5W
Product Certification	CE,FCC,ROHS
EMC	EN61000-6-1:2007   EN61000-6-3:2007+A1:2011

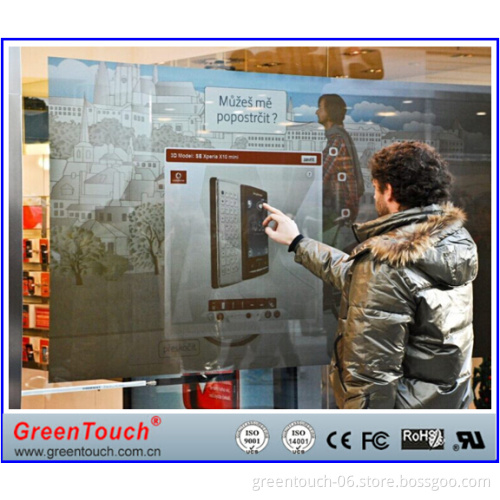

  Product Overviews   Interactive touch foil pictures shown:     Interactive touch foil certificate:     Feature and Use area Interactive touch foil advantage: 1. Super-thin,and transparent appearance 2. High definition, Stable touch 3. Well-positioned ,and support multi touch points 4. Through the glass or other objects to touch just like gesture 5. The size can be customized   Interactive touch foil application:  Suitable for Store window displays,  Indoor / outdoor kiosks,Exhibitions, Visitor attractions,  Museums Touch tables,  Training,meeting rooms,etc.   Related Products  Please Click here to know more touch products which may interested by you and contact us, Thank you for your concern !     FAQ   Q: What system it support ? A: compatible with Win7/8, Android (A20,RK3188,RK3288), Linux (Ubuntu) .
  Q: What application with it ? A: LCD panel or Projector    Q: What is your MOQ? A: 1pcs   Q: Which certificates passed ?  A: CE,FCC,RoHs.   Q: How proceed the order?
A: online or offline     Payment terms: TT, Western Union, PAYPAL, Trade Assurance
   1) For sample order : 100% T/T, Western Union, Paypal.
   2) For bulk order more than ten thousand dorllors : 50% Deposit T/T Blance before goods ship out.   Q: What is your guarantee period?
A:  1years warranty.   Q: What is your delievey time ? A: Sample order : within 1-3days, 5-12working days for bulk production after confirmed.   Q: How to ship it out ?
A: Use express : DHL, FEDEX,TNT,EMS or UPS.
  Q: what's the direct contact way ?  A: Skype: greentouch5     Tel/Wechat : +86 13827465009     or send inquiry through email or just click below " send " to send message to us.
