GreenTouch LCD display and projector 15" USB multi interactive sensor film touch foil

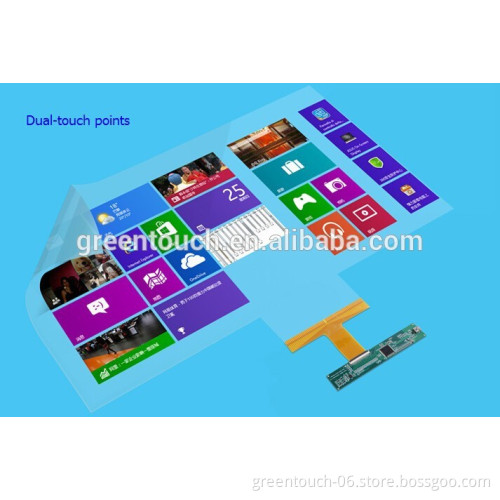

          Direct contact skype: greentouch5   Interactive touch foil (true 2,4,10,20,40points touch)       Interactive Touch Foil products discrption :               Interactive touch foil is transparent touch sensitive film, affixed to the membrane in the back of the glass or transparent acrylic plate, glass or acrylic panels can instantly transform size touch screen. Only a few microns thick our thin film display screens can turn any surface into a high definition multi media display surface. Rear projected images, video and dynamic media content can be displayed in any format, anywhere.  our touch foil can be pasted on a glass window or inside of a glass door and a simple back-projection or front-projection projector can turn the glass window or glass door into a large touch screen. This film enables projection of product information directly on the glass to attract interactivity with the potential customers. It is a perfect promotional display that not only provides interactive promotion and customer experience around the clock but also records the interactive data from potential customer   Interactive touch foil type :

Touch foil type for paste	Tail version	Touch controller	Foil ratio	Touch points
Water-adhesive (removable)	Base or bottom	USB interface	16:9 (17”-120”)	2,4,10,20,40 points
Adhesive (permanent)	Side or short	USB interface	4:3 (40”-120”)

    Interactive touch foil advantage: 1. Super-thin,and transparent appearance 2. High definition, Stable touch 3. Well-positioned ,and support multi touch points 4. Through the glass or other objects to touch just like gesture 5. The size can be customized   Interactive touch foil application:  Suitable for Store window displays,  Indoor / outdoor kiosks,Exhibitions, Visitor attractions,  Museums Touch tables,  Training,meeting rooms,etc.     Interactive touch foil more specification:

Induction method	The improved projected sensing technology, criss-cross X, Y nanowires constitute sensing matrix
Touch size	17"~120" can be customized
Touch accuracy	No drift, the deviation is about 1~3mm
Calibration way	software calibration
Induction thickness (penetration)	Adjusted by software to adapt to various thickness of glass, even wear gloves to produce touch-sensitive, can penetrate non-metallic materials about the thickness of 20 mm (middle to allow air layer), the induction can even penetrate glass thickness aboutof 25mm
Scanning frequency	60Hz~130hz
Output way	USB 2.0 (HID public interface to USB Mini B interface)
Compatibility system	WIN7 /WIN8 /Linux (Ubuntu 12.04.4,kernel version:3.11.0-15-generic) / Android4.2 or above ( kernel veersion>A20->3.3.0,RK3188->3.0.36) etc.
Temperature range	-20°C~60°C
Humidity range	0% RH to 95% RH (without condensation neighborhood)
Transmittance	>93%
Power consumption	Max 0.5W
Product Certification	CE,FCC,ROHS
EMC	EN61000-6-1:2007   EN61000-6-3:2007+A1:2011

    Interactive touch foil pictures shown:        Interactive touch foil certificate:   Delivery and Payment way :         Factory shown:   Shipping
Note: DHL / UPS / Fedex Express usually takes about 3 ~ 7working days to destination, and it is about 5 ~ 10 work days by EMS or TNT, Hong Kong Air Mail and Air Parcel Hong takes 7 to 30 days to ship to the world

1.we will sent the item within 3 business days after payment has been confirmed, if the payment is not available, your order will be automatically closed
2. The buyer is responsible for any insurance, problems and damage which caused by shipping service such accidents, delays or other issues. In addition, the buyer should be responsible for any tax and duty charged by their country and the goods will be marked as gift or sample for your easy customs clearance and less charge (if you want to declare the goods as other item name, or specify an value for custom, please let us know when ordering


Feedback 1. Confirm the buyer will be highly appreciated after receiving the items.
2. Since your feedback is very important to our business development, we sincerely invite you to leave positive feedback I have here you are satisfied with our products and services, is just take your 1 minute, but this 1 minute has the extremely important value for us.


What we can do ?
1. All of our products are processed, aging test before delivery, and we guarantee to use our product safety
2. Support your logo imprinted on the products and let your logo to shine everywhere.
3. OEM / ODM orders are warmly welcome.
  Warranty and Returns
1. All the products and accessories have been tested 3 times before our ship.
2. All products have 1 year warranty, if there is an artificial problem, we will replace or repair for you free
3. We have the best after-sale service, if any problems occur, our team will do everything possible to solve for clients.


Hope to establish friendly business relationship with all of you.Your comments on our products or any information from your market will be highly appreciated.
